Comparison and evaluation of data correction methods for directional polarimetric cameras
-
摘要:

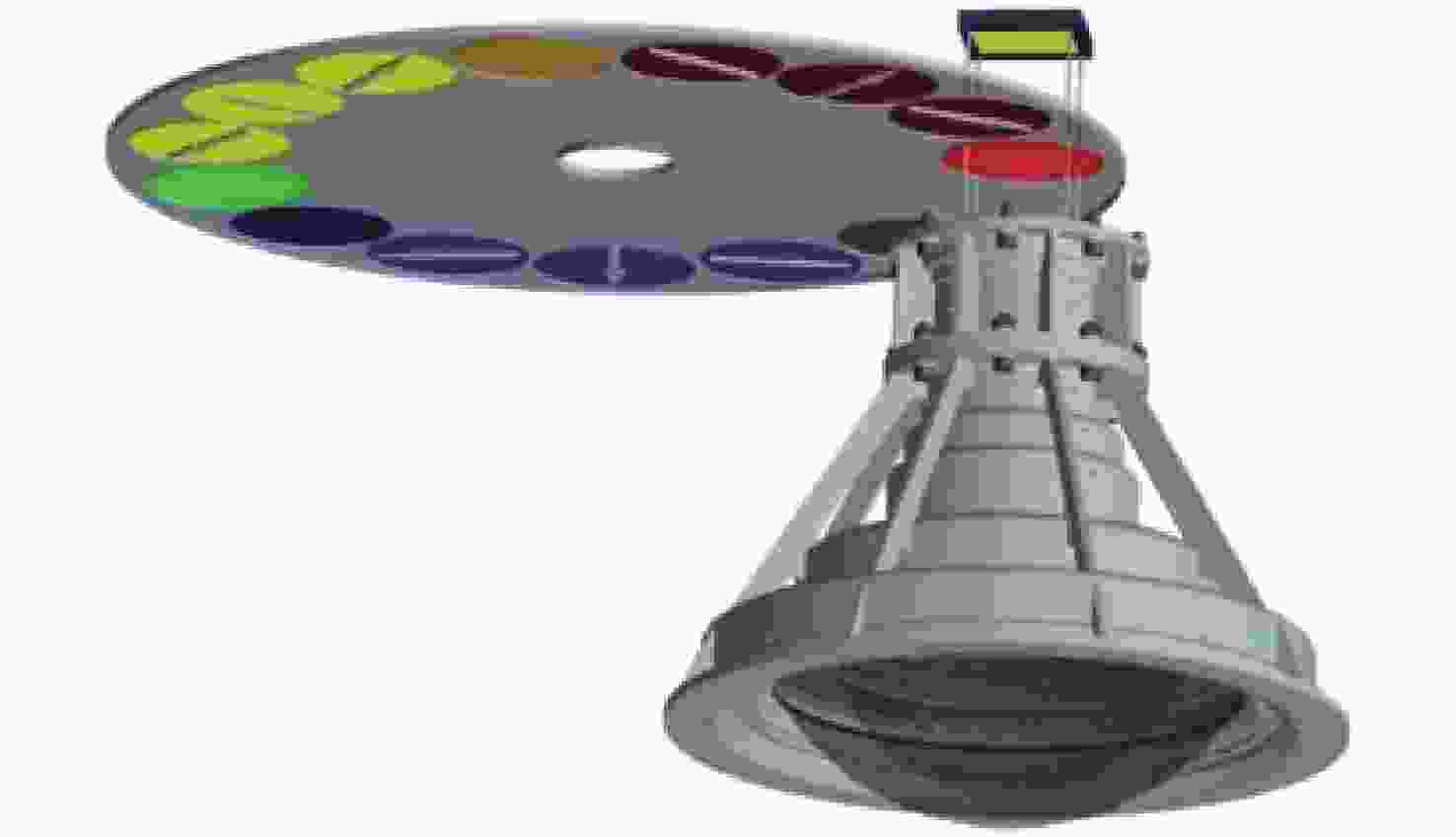

多角度偏振成像仪(DPC)在数据校正过程主要包括本底校正和帧转移校正2部分。光电探测器的图像采集是一个随机抽样的过程，数据校正过程需对抽样结果进行运算，从而引入噪声。结合DPC数据校正过程，主要研究本底校正和帧转移效应校正对信噪比(SNR)的影响，分析2种帧转移效应校正方法的情况，分别对SNR进行建模和仿真，并用大气环境监测卫星DPC实测数据进行验证。结果表明：本底校正和帧转移效应校正均会使噪声增加，降低SNR；本底校正时应选择大于5帧本底探测数据；2种帧转移效应校正方法相比，列总量比例法优于暗行法，最大可以使SNR增加15.8。
Abstract:The data correction process of a directional polarimetric camera (DPC) primarily includes two components: background correction and frame transfer effect correction. The image acquisition process of the photodetector is a random sampling procedure, and mathematical processing methods are applied to the sampling results during data correction, which introduces noise. This paper mainly discussed the influence of dark background correction and frame transfer effect correction on the signal-to-noise ratio (SNR) during DPC data processing. Modeling and simulation of the SNR for two frame transfer effect correction methods were conducted. Validation was performed using actual data from the DPC onboard an atmospheric monitoring satellite. The results demonstrate that both background correction and frame transfer effect correction increase noise, thus reducing the SNR. Background correction should involve more than five background data sets. Compared to the two frame transfer effect correction methods, the sum of column ratio method outperforms the dark row method, achieving a maximum increase in SNR of 15.8.
-
表 1 辐亮度计算结果
Table 1. Results of radiance calculation
场景 归一化
辐亮度辐亮度/
(W·m−2·sr−1·µm−1)信号
灰度值信号
电子数陆地晴空平均值 0.245 75.000 3722.4 35896 陆地有云最大值 1.085 332.771 16516.1 159268 归一化辐亮度为0.1 0.100 30.612 1519.3 14651 归一化辐亮度为0.2 0.200 61.340 3044.4 29358 归一化辐亮度为0.3 0.300 92.066 4569.4 44064 归一化辐亮度为0.4 0.400 122.449 6077.4 58606 归一化辐亮度为0.5 0.500 153.351 7611.1 73395 归一化辐亮度为0.6 0.600 184.132 9138.8 88127 归一化辐亮度为0.7 0.700 214.286 10635.4 102559
下载: 导出CSV
表 2 帧转移效应计算结果
Table 2. Results of frame transfer effect calculation
项目 灰度值 电子数 晴空场景 3722.4 35896 有云场景 16516.1 159268 场景平均值 8839.9 85245 帧转移效应 2077.4 20033
下载: 导出CSV

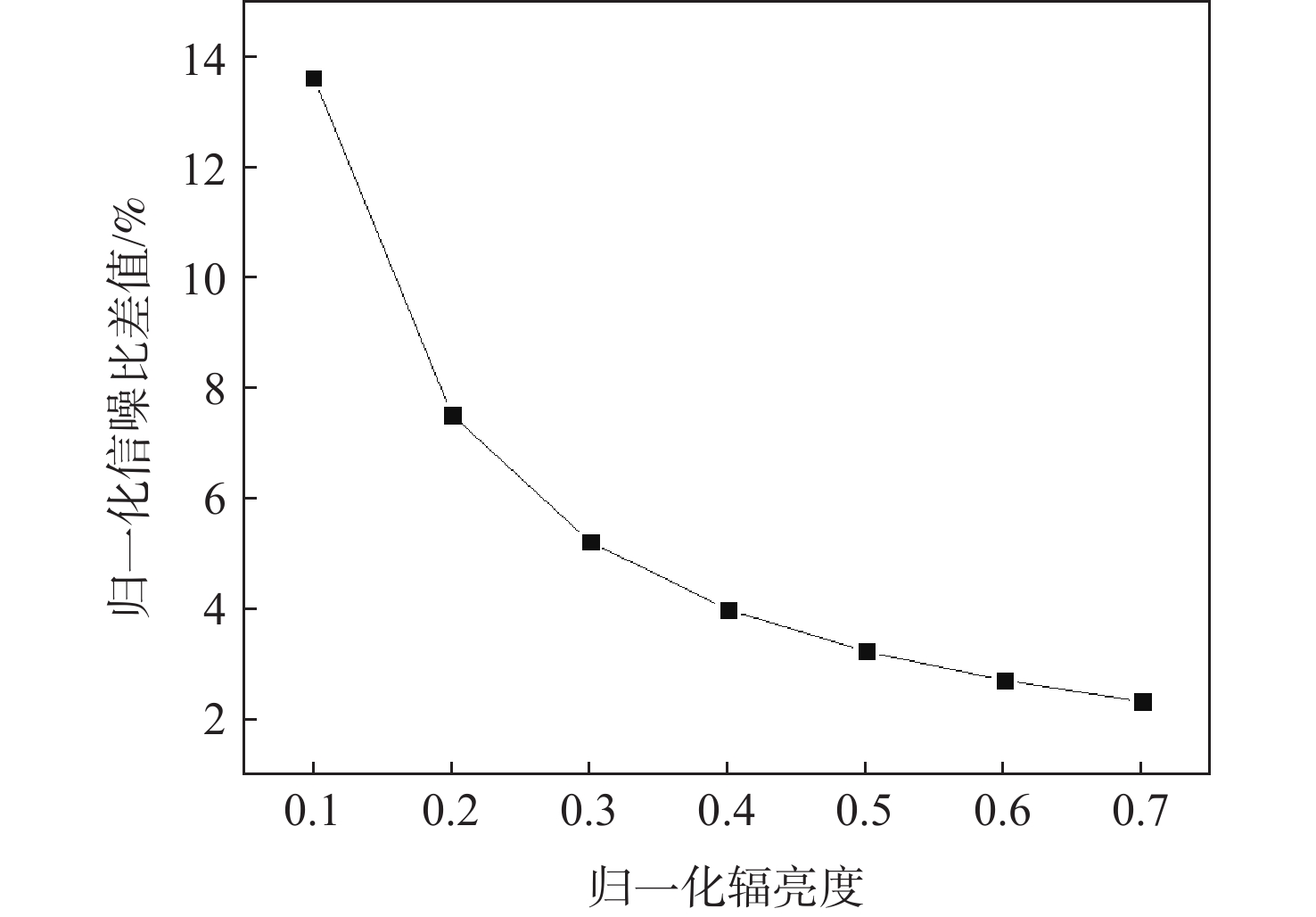

表 3 信噪比仿真计算结果
Table 3. Signal-to-noise ratio simulation results
归一化
辐亮度值信号
电子数帧转移
电子数理论最大
信噪比噪声等效电子数 信噪比 暗行法 列总量比例法 暗行法 列总量比例法 0.1 14651 20033 121.0 140.2 104.5 121.0 121.0 0.2 29358 20033 171.3 185.4 158.4 171.3 171.3 0.3 44064 20033 209.9 221.5 198.9 209.9 209.9 0.4 58605 20033 242.1 252.2 232.4 242.1 242.1 0.5 73395 20033 270.9 280.0 262.1 270.9 270.9 0.6 88128 20033 296.9 305.2 288.8 296.9 296.9 0.7 102560 20033 320.2 328.0 312.7 320.2 320.2
下载: 导出CSV

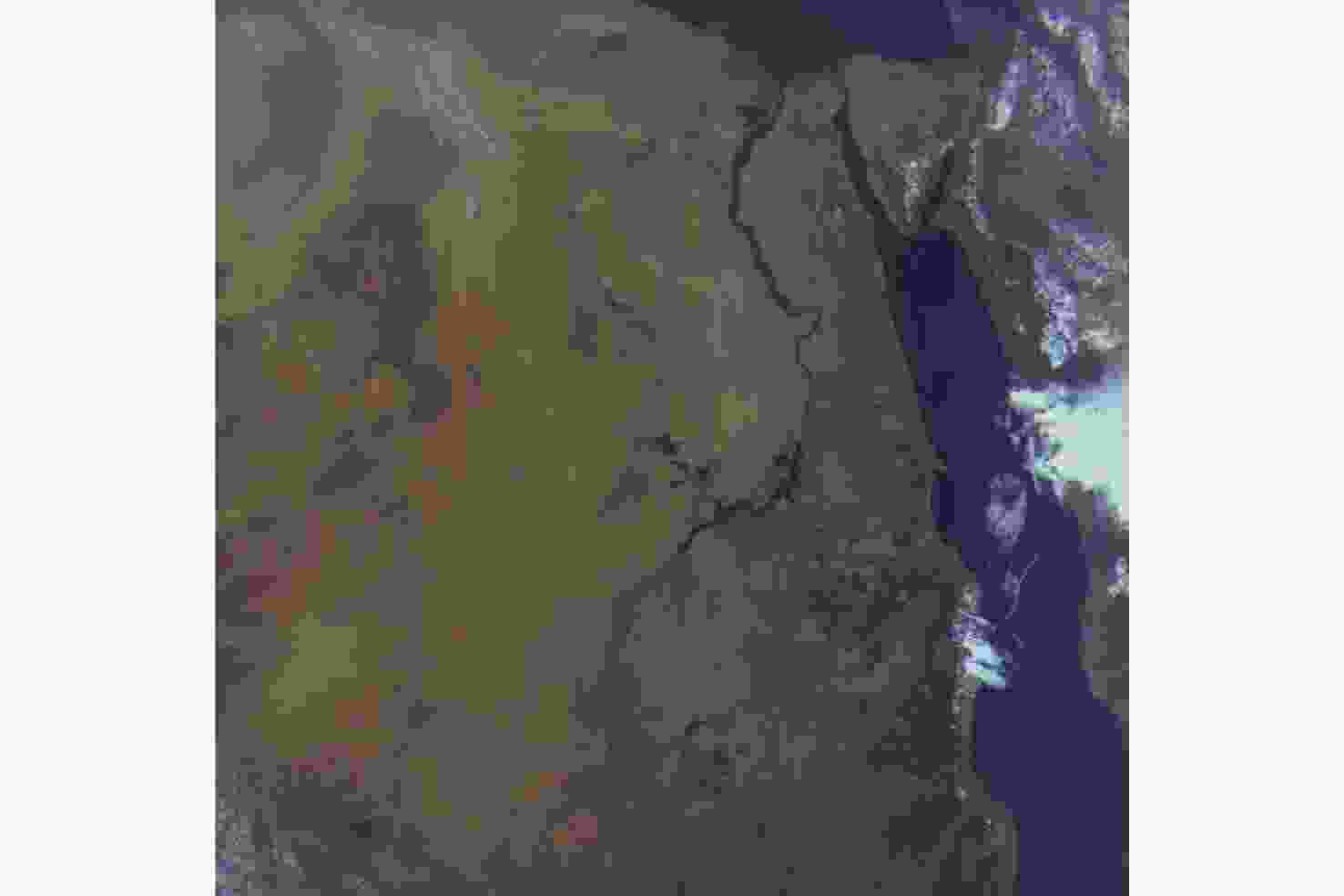

表 4 卫星数据计算结果
Table 4. Calculation results using satellite data
场景 信号电子数 帧转移电子数 最大信噪比理论值 本底校正后信噪比 暗行法信噪比 列总量比例法信噪比 相对差值/% 沙漠 77064 21034 277.60 276.20 266.4 275.9 3.4 沙漠中河流 14504 19832 120.43 119.15 103.1 118.9 13.2
下载: 导出CSV
-
[1] ANGAL A, XIONG X X, SUN J Q, et al. On-orbit noise characterization of MODIS reflective solar bands[J]. Journal of Applied Remote Sensing, 2015, 9: 094092. doi: 10.1117/1.JRS.9.094092 [2] TWEDT K A, LEI N, XIONG X J. On-orbit noise characterization of the SNPP VIIRS reflective solar bands[C]//Proceedings of the Earth Observing Systems XXII. Bellingham: SPIE, 2017. [3] 董浩, 刘振海, 赵鑫鑫, 等. 环境减灾二号卫星偏振扫描大气校正仪在轨信噪比评估[J]. 光学学报, 2022, 42(24): 2401005. doi: 10.3788/AOS202242.2401005DONG H, LIU Z H, ZHAO X X, et al. On-orbit SNR evaluation of polarized scanning atmospheric corrector onboard HJ-2 satellites[J]. Acta Optica Sinica, 2022, 42(24): 2401005(in Chinese). doi: 10.3788/AOS202242.2401005 [4] 高连如, 张兵, 张霞, 等. 基于局部标准差的遥感图像噪声评估方法研究[J]. 遥感学报, 2007, 11(2): 201-208. doi: 10.11834/jrs.20070227GAO L R, ZHANG B, ZHANG X, et al. Study on the method for estimating the noise in remote sensing images based on local standard deviations[J]. Journal of Remote Sensing, 2007, 11(2): 201-208(in Chinese). doi: 10.11834/jrs.20070227 [5] CHAPPELL A, SEAQUIST J W, EKLUNDH L. Improving the estimation of noise from noaa avhrr ndvi for Africa using geostatistics[J]. International Journal of Remote Sensing, 2001, 22(6): 1067-1080. doi: 10.1080/01431160120633 [6] DELVIT J M, LEGER D, ROQUES S, et al. Signal-to-noise ratio assessment from nonspecific views[C]//Proceedings of the Image and Signal Processing for Remote Sensing VII. Bellingham: SPIE, 2002. [7] FOUGNIE B, BRACCO G, LAFRANCE B, et al. PARASOL in-flight calibration and performance[J]. Applied Optics, 2007, 46(22): 5435-5451. doi: 10.1364/AO.46.005435 [8] 涂碧海. 大气气溶胶多角度偏振成像仪数据校正及检验方法研究[D]. 合肥: 中国科学技术大学, 2020: 29-85.TU B H. Research on data correction and inspection method of atmospheric aerosol multi-angle polarization imager[D]. Hefei: University of Science and Technology of China, 2020: 29-85(in Chinese). [9] 李扬, 骆冬根, 孙亮, 等. 帧转移型面阵CCD相机拖尾评价标准和校正方法[J]. 光子学报, 2022, 51(4): 0404001. doi: 10.3788/gzxb20225104.0404001LI Y, LUO D G, SUN L, et al. Evaluation criteria and correction method of frame transfer CCD camera smearing[J]. Acta Photonica Sinica, 2022, 51(4): 0404001(in Chinese). doi: 10.3788/gzxb20225104.0404001 [10] 翁建文, 袁银麟, 郑小兵, 等. 星载偏振相机帧转移模糊效应校正方法研究[J]. 光学学报, 2019, 39(12): 1228005. doi: 10.3788/AOS201939.1228005WENG J W, YUAN Y L, ZHENG X B, et al. Correction method for frame-transfer blurring effect of spaceborne polarization camera[J]. Acta Optica Sinica, 2019, 39(12): 1228005(in Chinese). doi: 10.3788/AOS201939.1228005 [11] European Machine Vision Association. Implementation of EMVA 1288 standard release 4.0 for characterization of image sensors [EB/OL].(2021-06-16)[2023-08-04].http://www.emva.org/wp-content/uploads/EMVA1288Linear_4.0Release.pdf. [12] 曹金彦, 贺小军, 陈茂胜, 等. 航天TDICCD相机谱间串扰分析与处理[J]. 半导体光电, 2024, 45(6): 953-959.CAO J Y, HE X J, CHEN M S, et al. Spectral crosstalk analysis and processing for aerospace TDICCD camera[J] Semiconductor Optoelectronics, 2024, 45(6): 953-959(in Chinese). [13] 关怡然, 李新, 张权, 等. 高光谱紫外辐照度仪CCD电路系统的设计及测试[J]. 量子电子学报, 2024, 41(2): 246-256. doi: 10.3969/j.issn.1007-5461.2024.02.007GUAN Y R, LI X, ZHANG Q, et al. Design and test of CCD circuit system of hyperspectral UV irradiance monitor[J]. Chinese Journal of Quantum Electronics, 2024, 41(2): 246-256(in Chinese). doi: 10.3969/j.issn.1007-5461.2024.02.007 [14] 黄辉, 熊健, 刘祥, 等. 基于图像信噪比的PSP图像平均幅数确定方法[J]. 计算机测量与控制, 2023, 31(12): 237-243.HUANG H, XIONG J, LIU X, et al. PSP image average number determination method based on image signal-to-noise ratio[J]. Computer Measurement & Control, 2023, 31(12): 237-243(in Chinese). [15] 朱树旺, 赵开春. 分焦平面偏振图像传感器信噪比标定[J]. 光学 精密工程, 2023, 31(7): 1012-1021. doi: 10.37188/OPE.20233107.1012ZHU S W, ZHAO K C. Calibration of signal-to-noise ratio of sub focal plane polarization image sensors[J]. Optics and Precision Engineering, 2023, 31(7): 1012-1021(in Chinese). doi: 10.37188/OPE.20233107.1012 -
