Non-cooperative automatic docking strategy of propellant umbilical connector for launch vehicle under fluctuating wind load
-
摘要:
为解决运载火箭推进剂连接器在脉动风载激励干扰下与箭上接口的动态非合作自动对接问题，提高自动对接系统鲁棒性及响应速度。分析连接器自动对接任务剖面，制定了由检测、控制、位姿调整单元等组成的技术路线；分析脐带臂风载激励响应特性，获得了平均风速分别为10 m/s、15 m/s、20 m/s脉动风载激励下脐带臂的摆动情况；通过自动对接仿真模型开展常规PID、PID+干扰观测器、分段PID+干扰观测器控制策略仿真对比分析，搭建自动对接联合试验系统，进行控制策略验证，成功完成了自动对接全流程试验。结果表明：分段PID+干扰观测器控制策略能有效降低脉动风载激励下脐带臂摆动对自动对接的干扰影响，跟踪性能改善效果明显，对接可靠，各工况下对接跟踪误差均在±38 mm以内，完成对接时间不超过3 min。
Abstract:To address the challenge of dynamic non-cooperative automatic docking between the umbilical connector and the onboard interface of a launch vehicle under fluctuating wind load disturbances, and to enhance the robustness and response speed of the docking system, this paper first analyzed the workflow of the automatic docking task and proposes a technical scheme composed of a detection module, a control module, and a pose adjustment module. Second, the wind-induced response characteristics of the umbilical arm were analyzed, and its swing behavior under average wind speeds of 10, 15, and 20 m/s was obtained. Finally, a comparative simulation analysis was conducted using conventional PID, PID with disturbance observer, and piecewise PID with disturbance observer control strategies with a co-simulation model. An integrated experimental system for automatic docking was developed to verify the effectiveness of the control strategies. Full-process docking experiments were completed. The results show that the piecewise PID combined with a disturbance observer effectively reduces the impact of umbilical arm swing under fluctuating wind loads, significantly improves tracking performance and docking reliability, maintains tracking errors within ±38 mm, and achieves docking within 3 min under various operation conditions.
-
Key words:
- automatic docking /
- non-cooperative /
- umbilical connector /
- docking strategy /
- launch vehicle
-
图 2 脐带臂模块（含管路、对接装置等）示意图
Figure 2. Umbilical arm module (including pipeline and docking device) diagram
图 3 顺风向脉动风载激励下脐带臂摆动位移时程片段
Figure 3. Displacement response of umbilical arm under fluctuating wind load in downwind direction
图 4 自动对接装置技术方案图
Figure 4. Technical scheme of umbilical connector automatic docking device

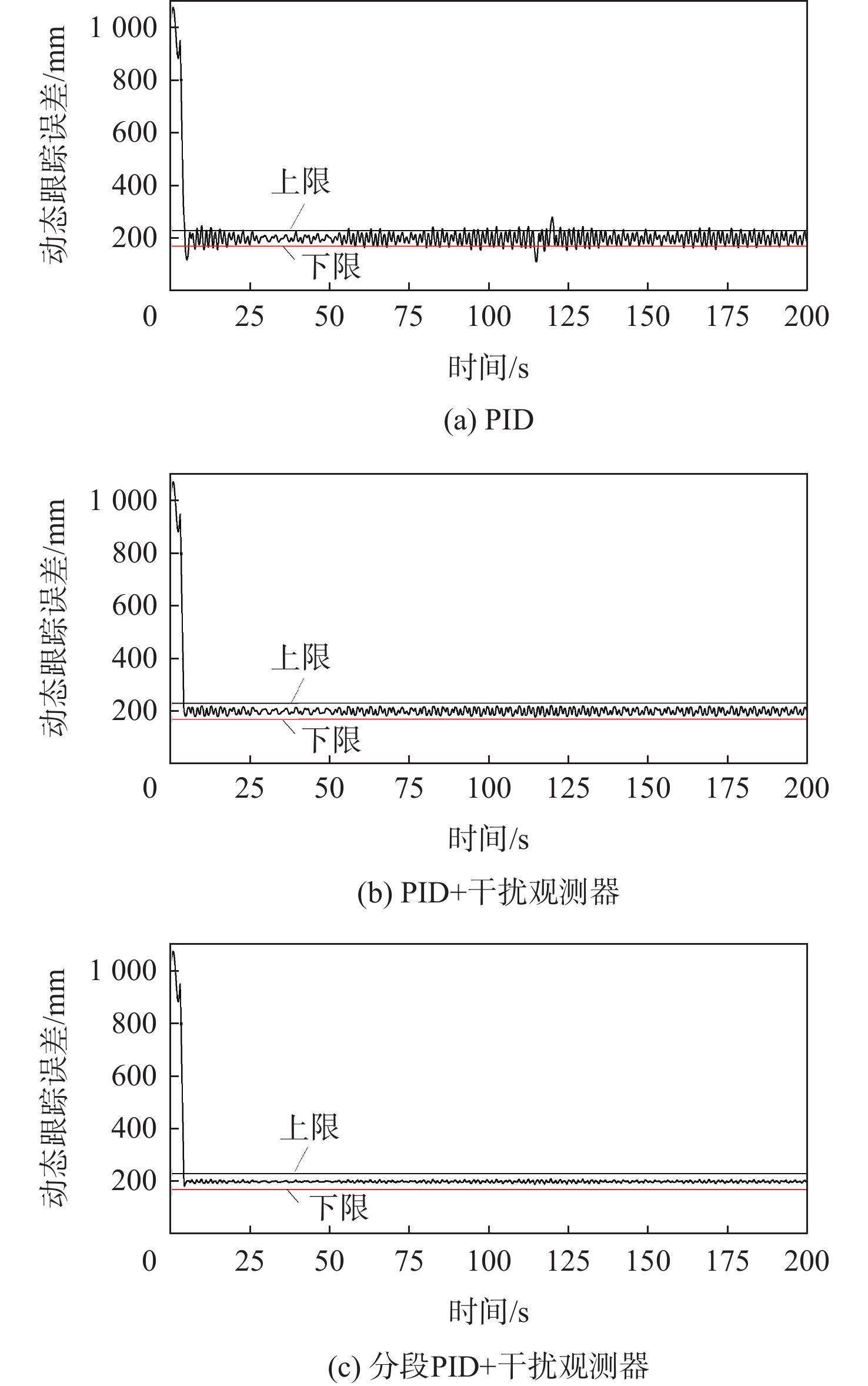

图 6 不同控制策略下跟踪误差对比
Figure 6. Comparison of tracking errors under different control strategies
图 7 脐带臂模拟装置
1. 底座； 2. 水平移动座； 3. 水平弹簧组；4. 垂直弹簧组；5. 对接装置安装座。
Figure 7. Analog device of umbilical arm
图 8 脐带臂模拟装置摆动位移理论、试验值对比
Figure 8. Comparison between theoretical and experimental swinging displacements of umbilical arm
图 9 自动对接联合试验系统
1. 自动对接装置； 2. 连接器； 3. 脐带臂模拟装置； 4. 箭上接口； 5. 箭体模拟运动台； 6. 底座。
Figure 9. Automatic docking co-experimental system
-
