摘要:

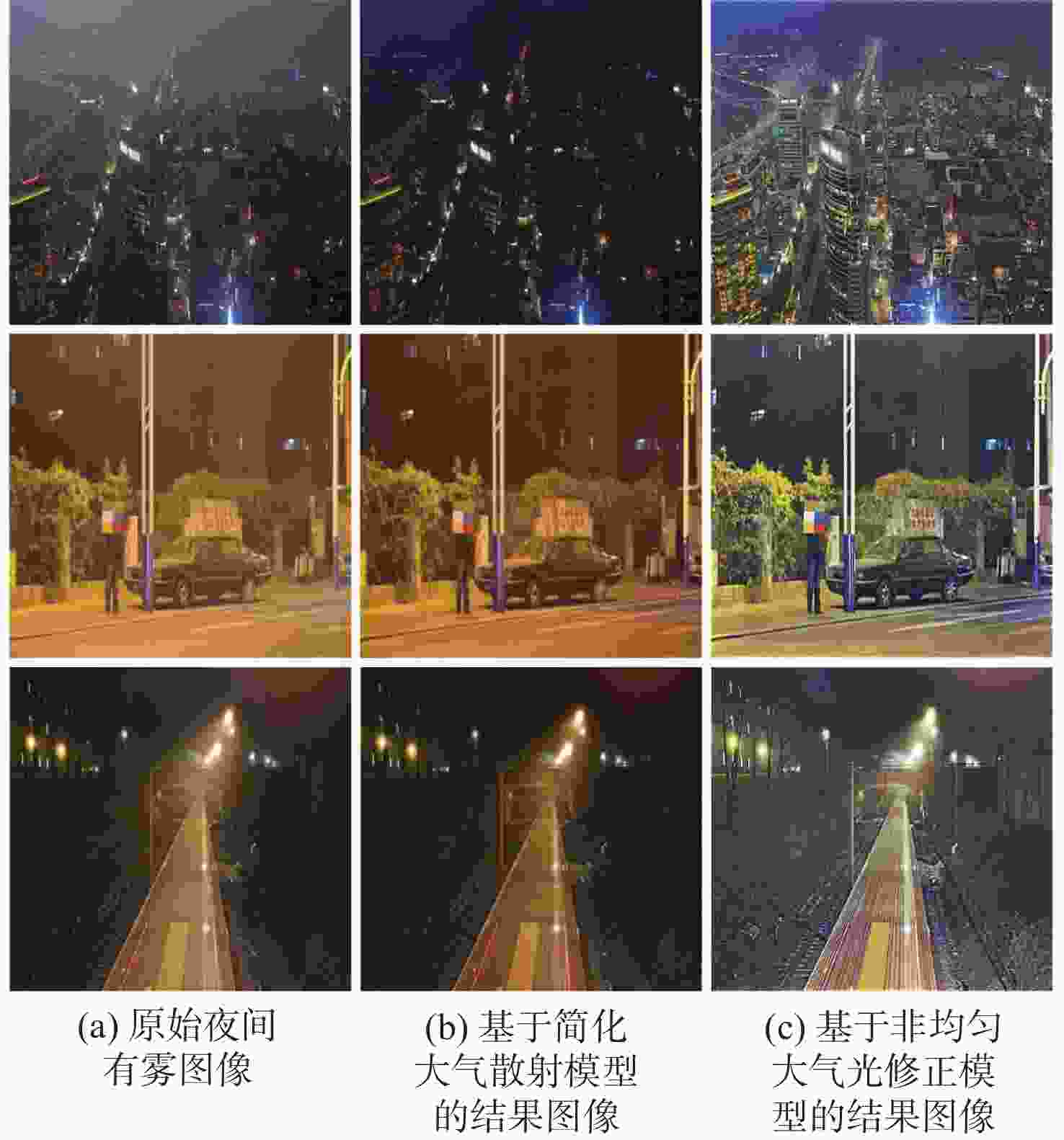

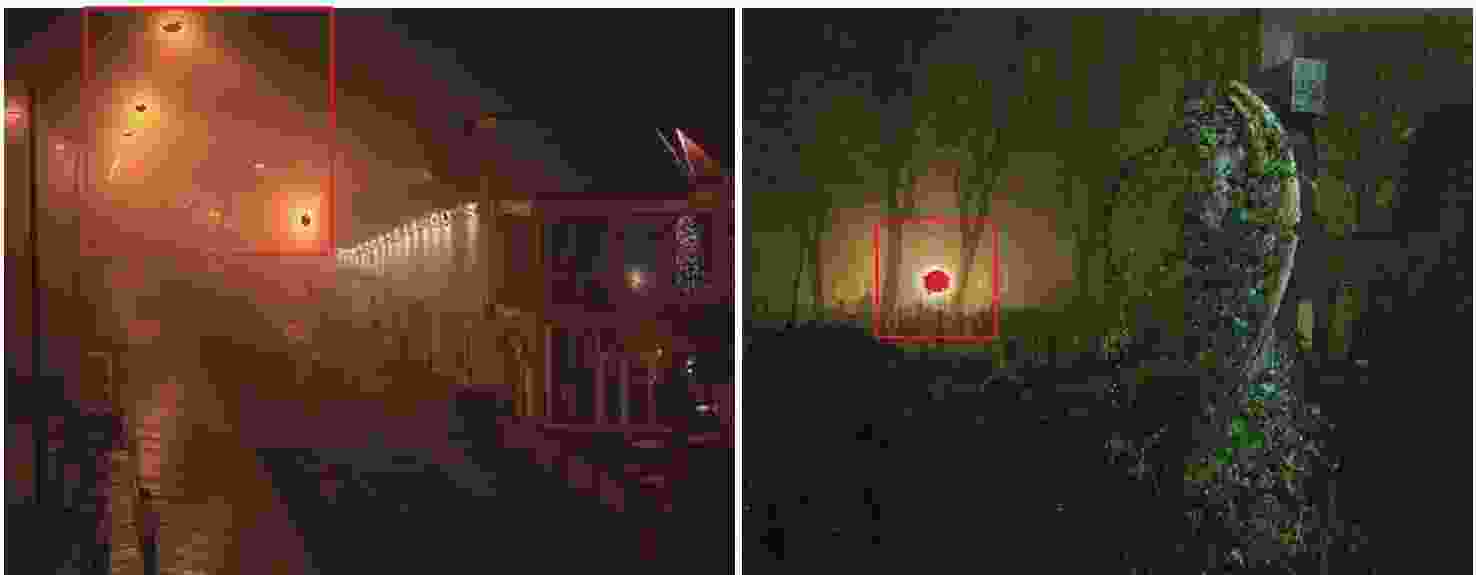

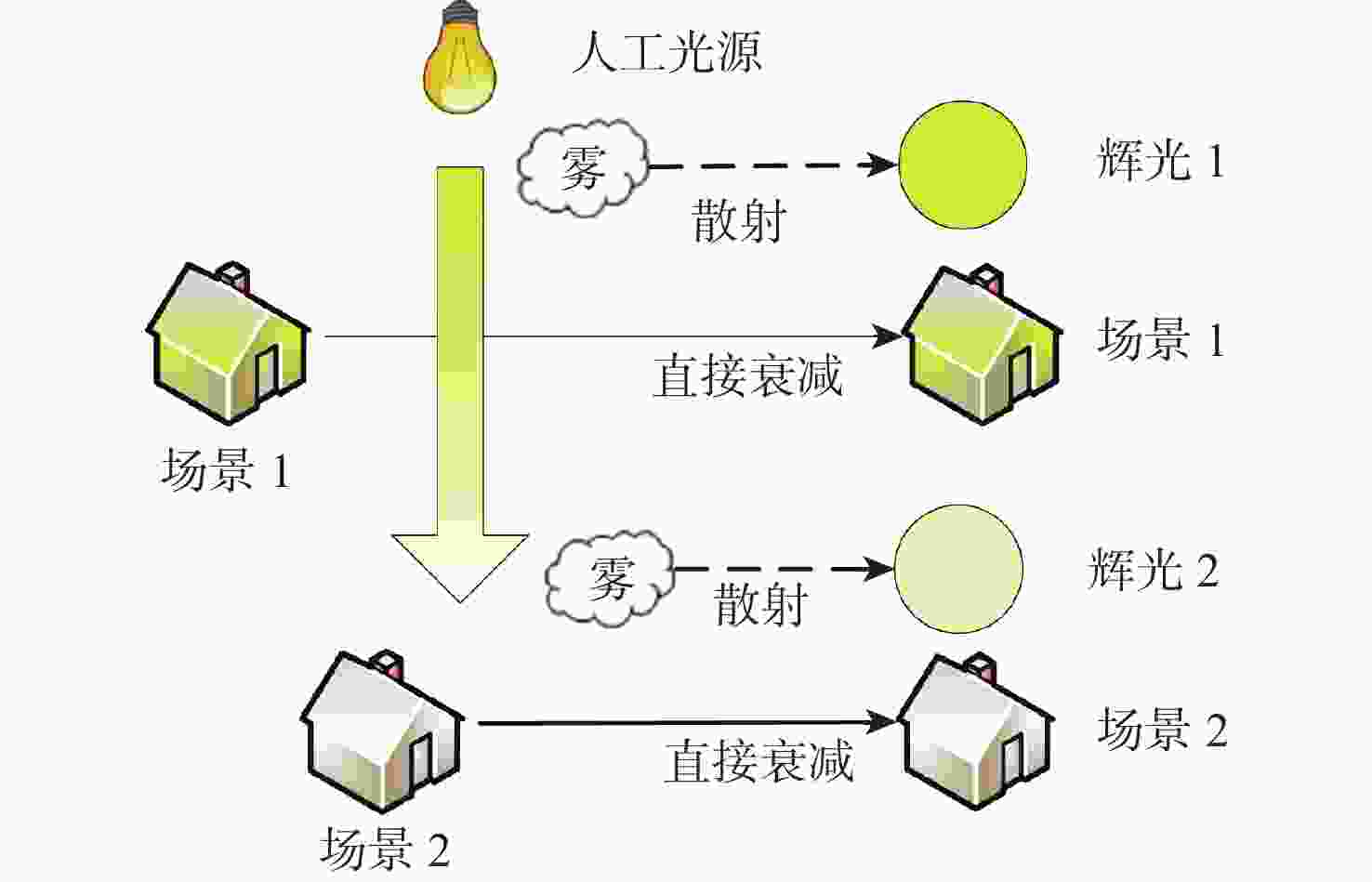

针对夜间有雾图像受人工光源影响，存在亮度低、辉光及色偏问题，提出一种基于非均匀大气光修正模型的夜间图像去雾算法。结合非均匀大气光成像特性，通过加入表面照射光和辉光项修正传统大气散射模型；根据图像亮度和饱和度分量引入近光源系数，准确估计辉光项以校正非均匀大气光；基于暗通道先验(DCP)及带色彩恢复的多尺度Retinex增强算法求解模型，使用引导滤波解决透射率块状效应，采用线性融合方法解决过度增强问题；利用高斯高通滤波增强图像细节，得到最终的清晰图像。实验结果表明：所提算法恢复的夜间图像颜色自然、细节丰富且可见度高；相比暗通道先验等经典算法，以及联合对比度增强和曝光融合(CEEF)等新颖算法，色差降低约15%，峰值信噪比提升约15%，平均梯度提升约8%，在定性和定量实验中更具优势。

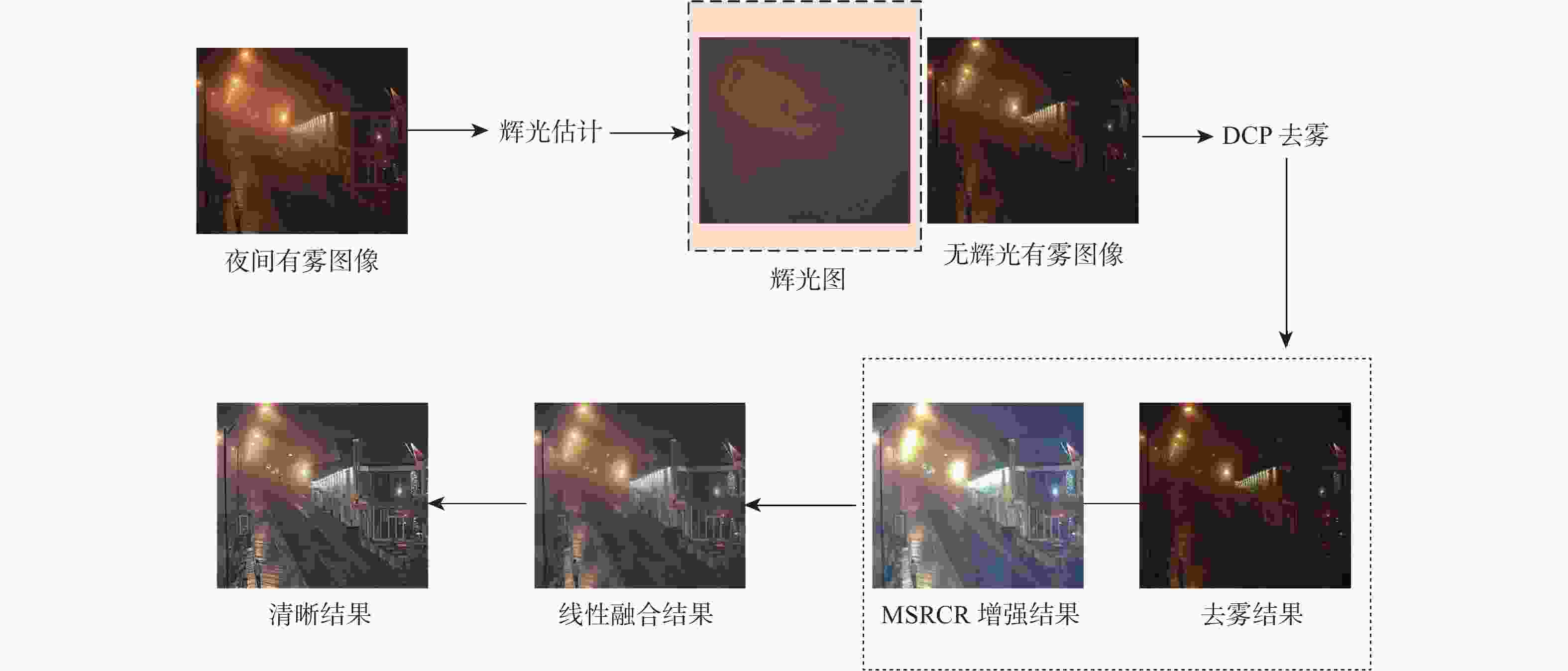

Abstract:To address the problems of low brightness, glow, and color distortion caused by artificial light sources in nighttime hazy images, this paper proposed a nighttime image dehazing algorithm based on a non-uniform atmospheric light correction model. Firstly, according to the imaging characteristics of non-uniform atmospheric light, the traditional atmospheric scattering model was modified by adding surface illumination light and glow terms. Secondly, the near-light source coefficient was determined based on image intensity and saturation components, and the glow term was accurately estimated to correct the non-uniform atmospheric light. Then, based on the dark channel prior (DCP) and multi-scale Retinex enhancement algorithm with color restoration ability, the study adopted guided filtering to solve the block effect of transmittance and the linear fusion to solve the problem of excessive enhancement. Finally, Gaussian high-pass filter was used for enhancing the details of the image to obtain the final clear image. The experimental results show that nighttime hazy images restored by the proposed algorithm have natural color, rich details, and high visibility. Compared to classical algorithms such as dark channel prior, as well as novel algorithms like contrast enhancement and exposure fusion (CEEF), the proposed algorithm reduces the color difference by about 15%, improves the peak signal-to-noise ratio by about 15%, and enhances the average gradient by about 8%, having more advantages in qualitative and quantitative experiments.
-

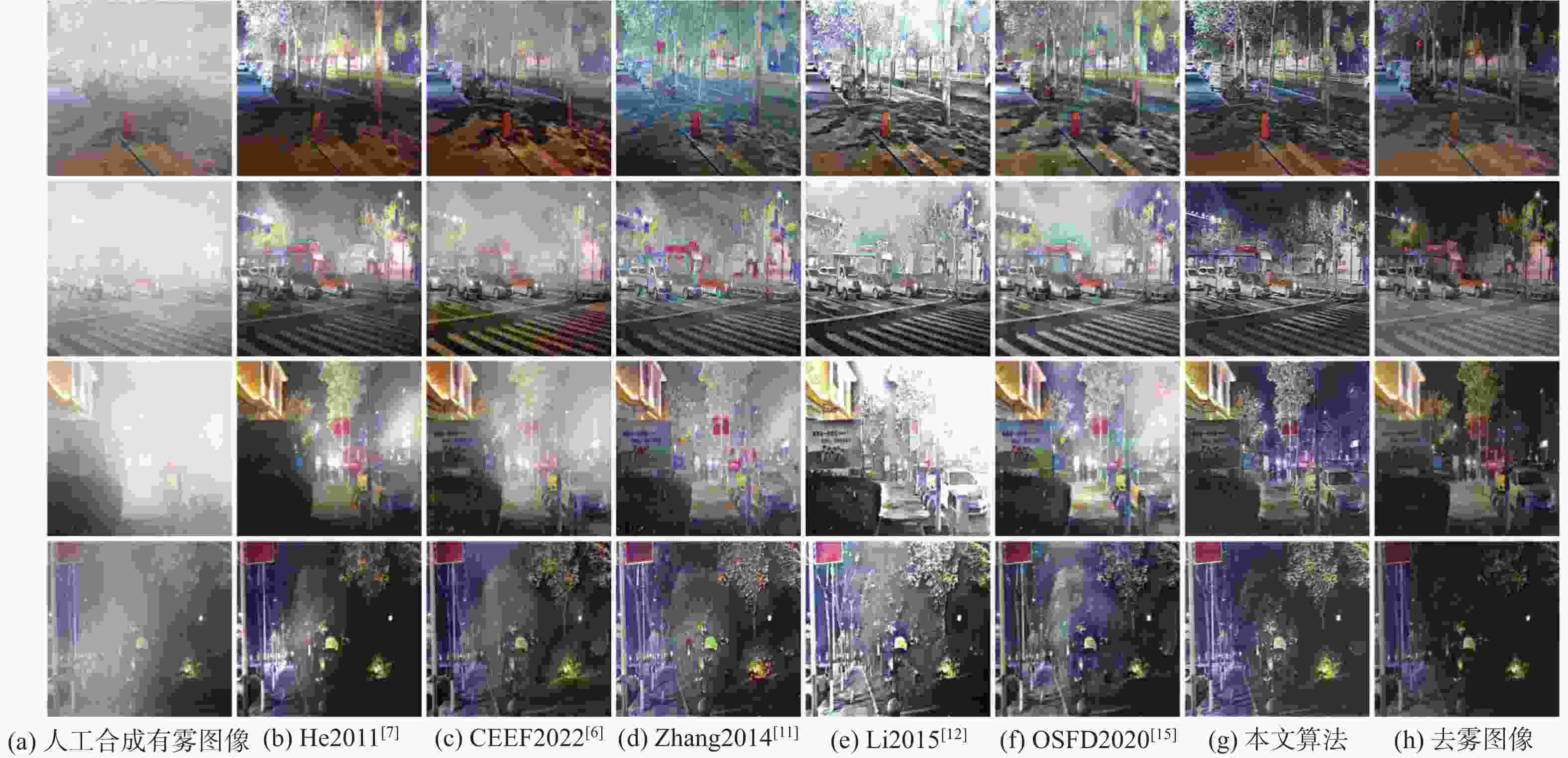

图 9 人工合成夜间有雾图像去雾结果对比
Figure 9. Comparison of dehazing results of synthetic nighttime hazy images

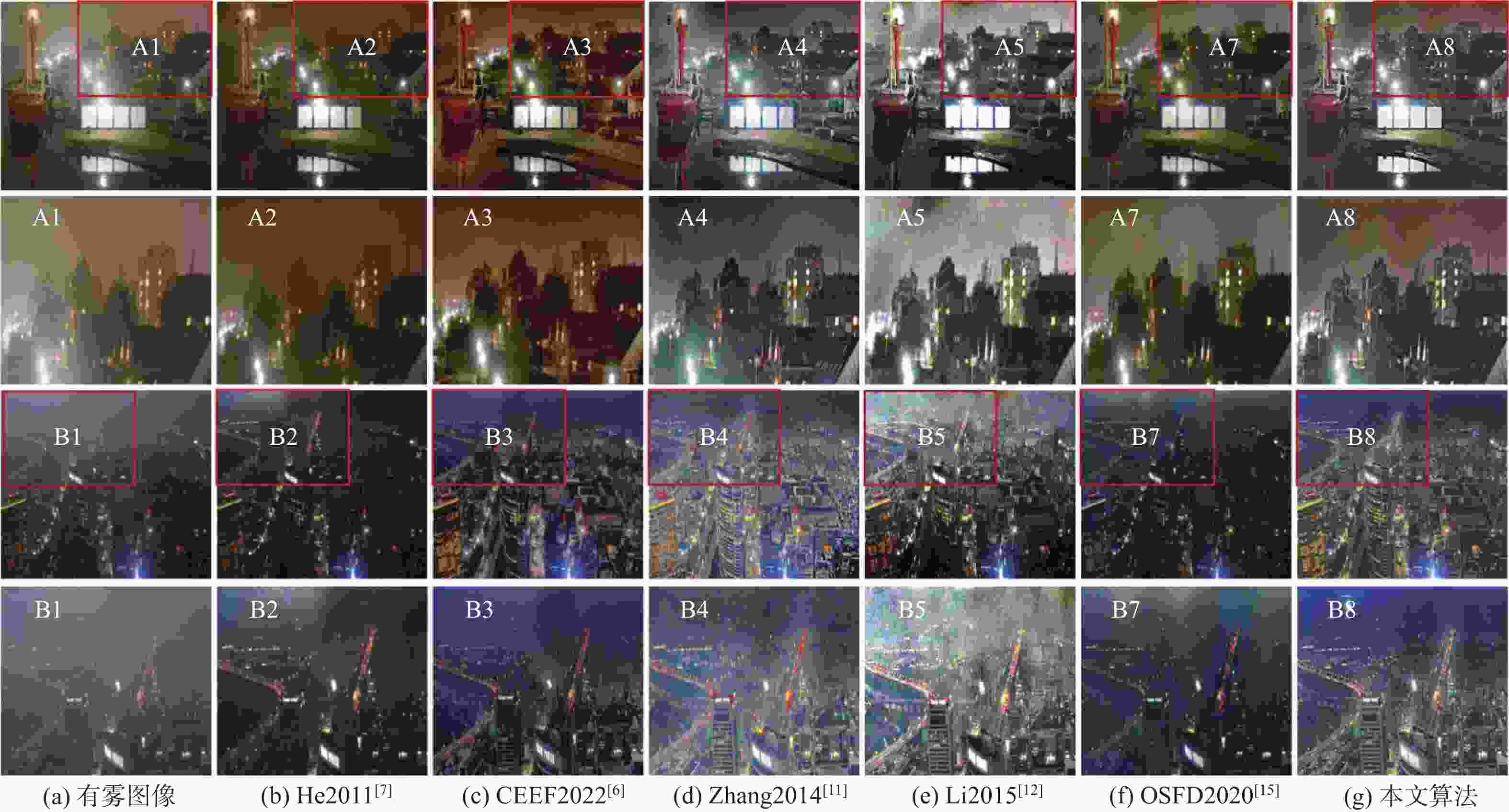

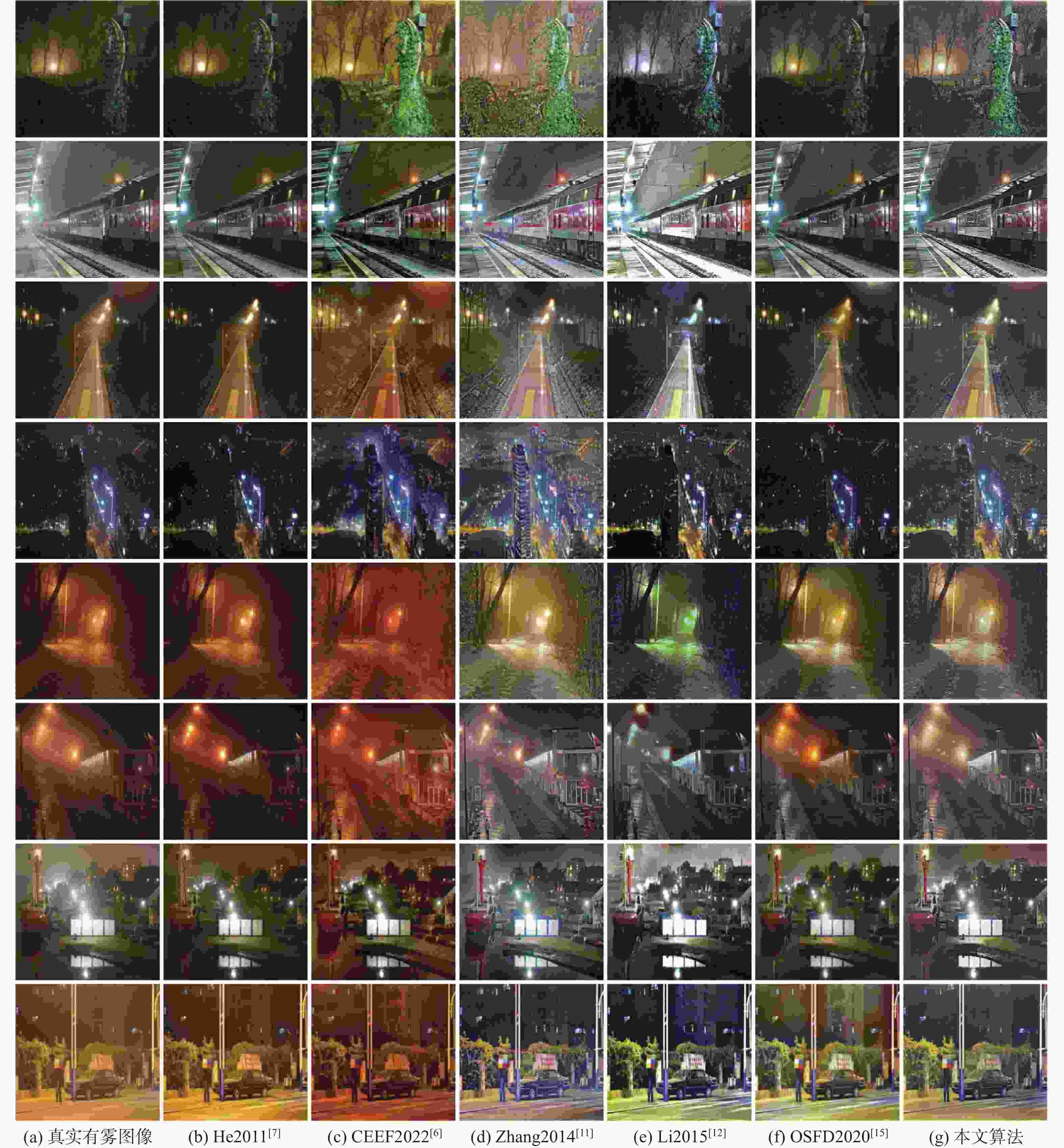

图 10 真实夜间有雾图像去雾结果对比
Figure 10. Comparison of dehazing results of real nighttime hazy images

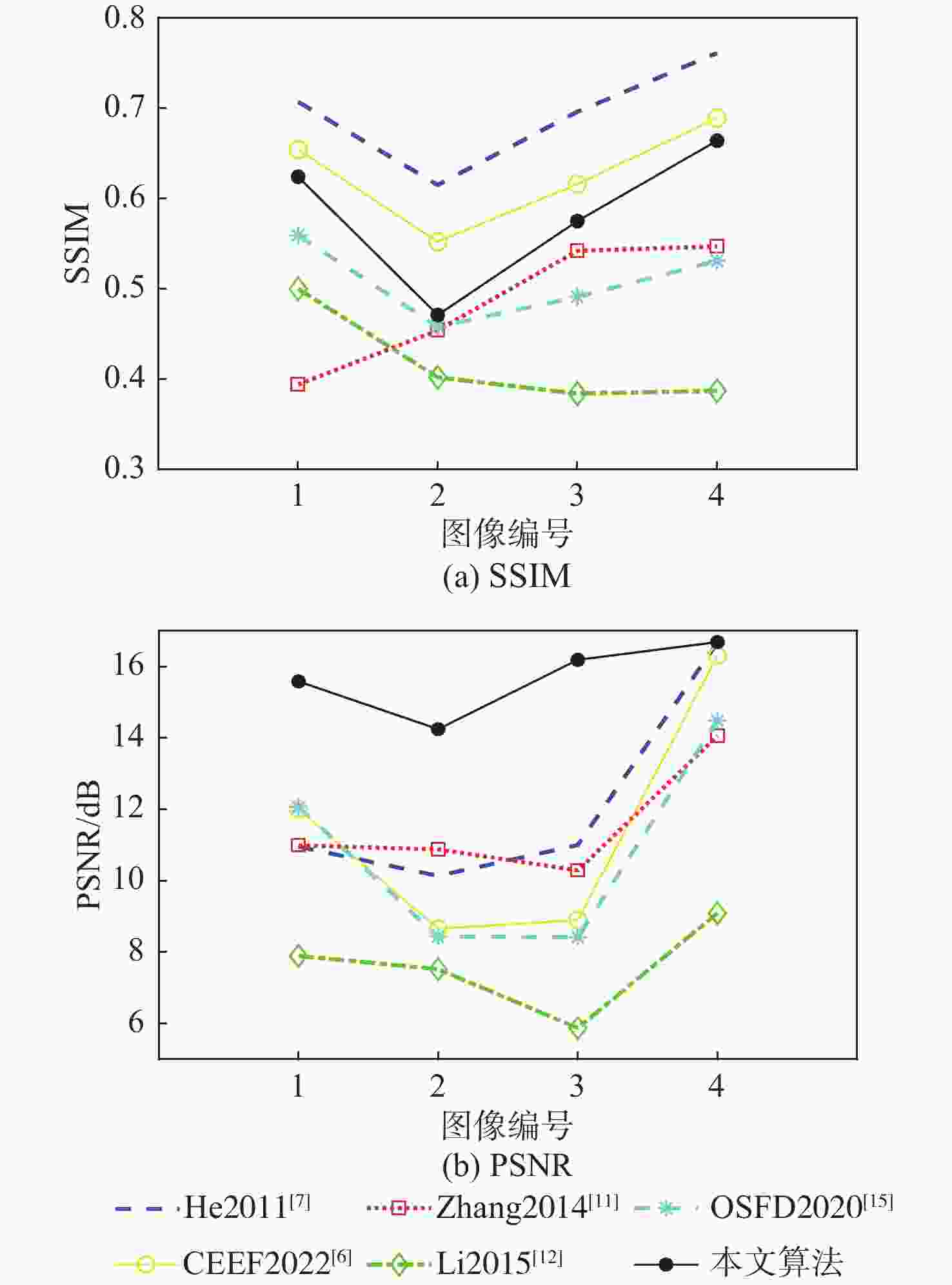

图 11 图9中4幅图像的有参考指标曲线
Figure 11. Curves of two reference indexes of four images in Fig. 9

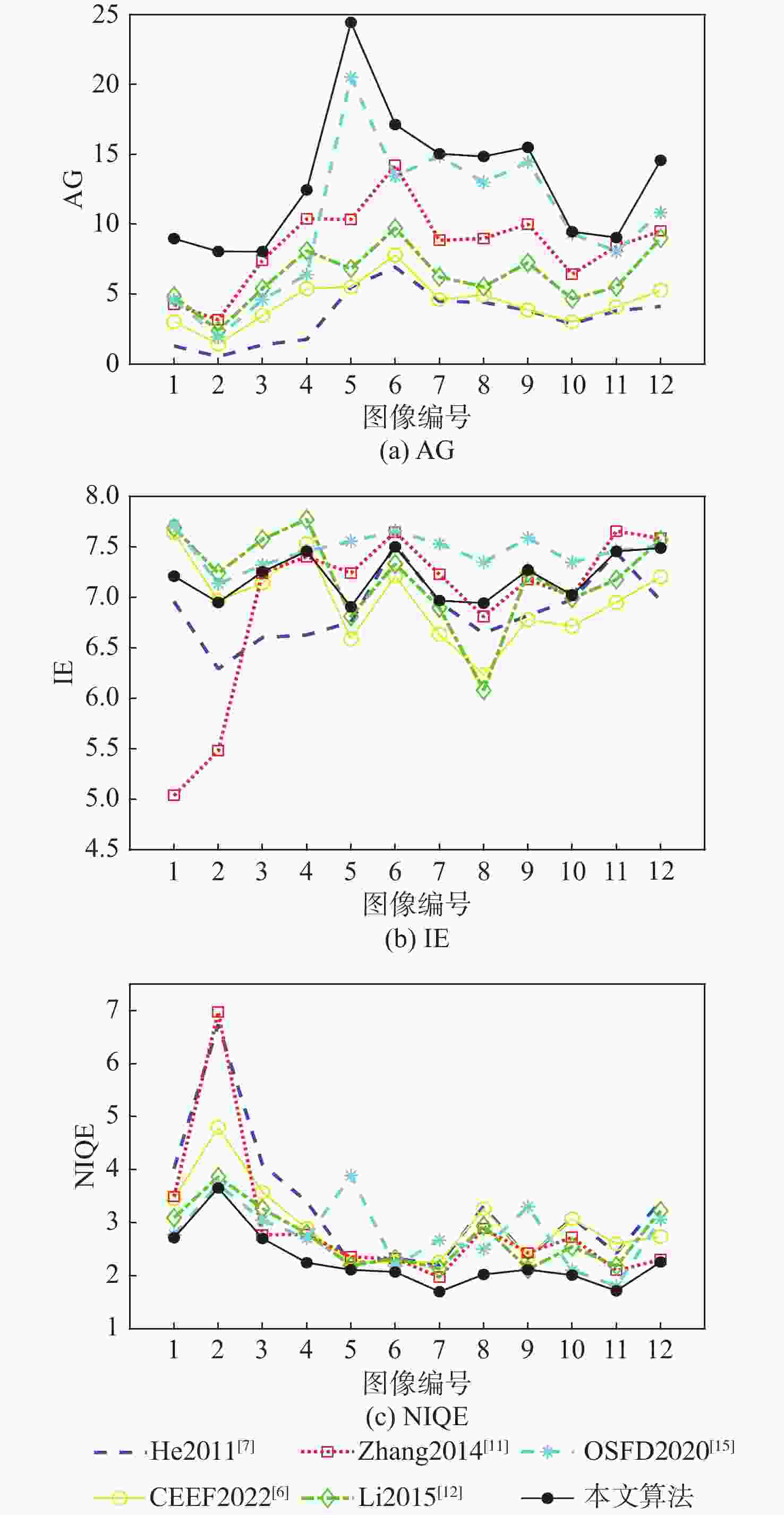

图 12 图9和图10中12幅图像的无参考指标曲线
Figure 12. Curves of three non-reference indexes of twelve images in Fig. 9 and Fig. 10

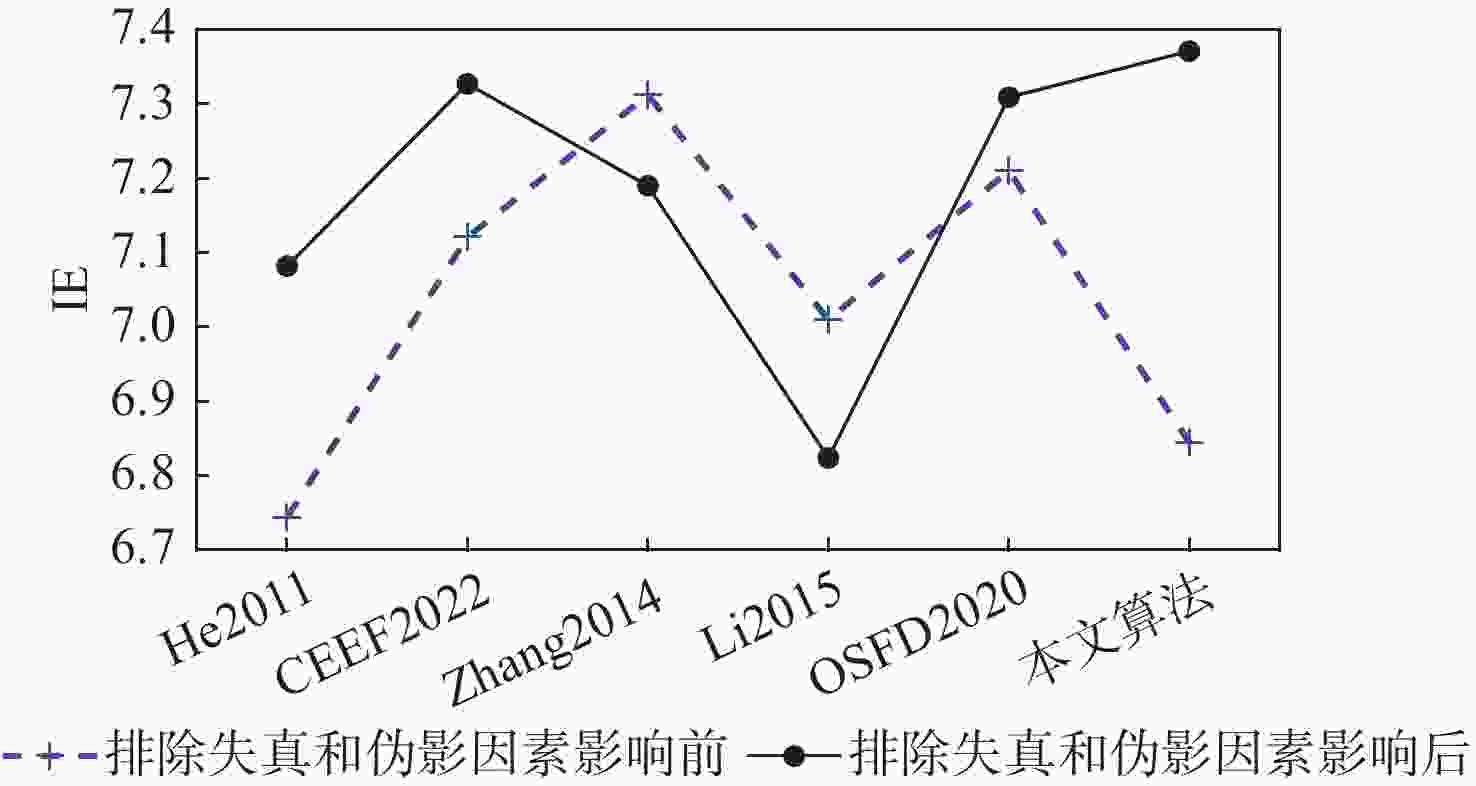

图 14 排除失真和伪影因素影响前后图像IE值对比
Figure 14. Comparison of image IE before and after eliminating distortion and artifact

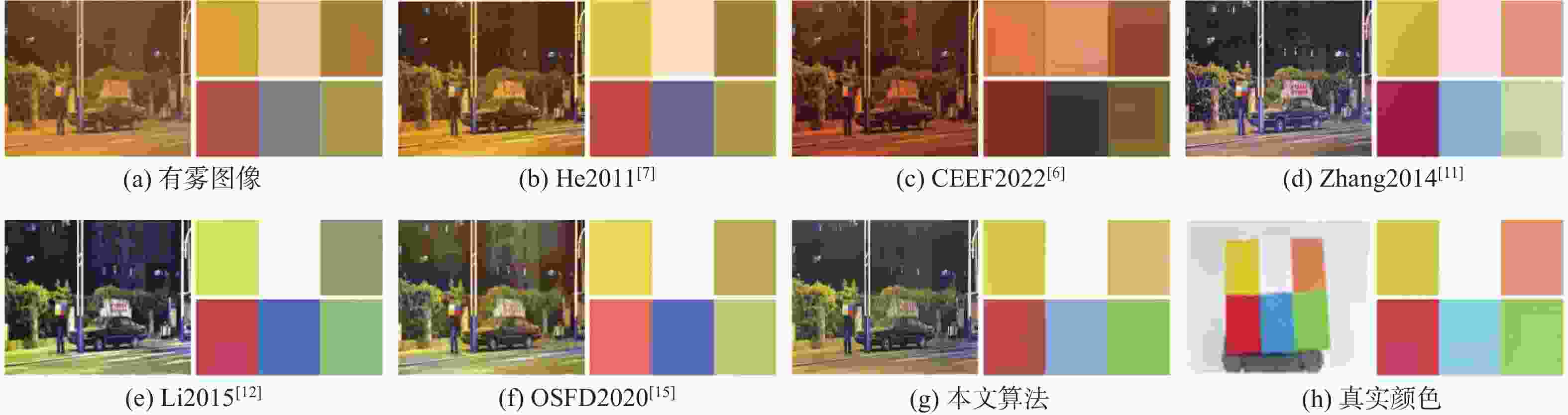

表 1 CIEDE2000评测值对比
Table 1. Comparison of CIEDE2000 metrics
算法 色差值 色差值均值 黄色 白色 褐色 红色 蓝色 绿色 He2011[7] 10.384 14.362 12.356 13.031 33.204 19.878 17.203 Zhang2014[11] 8.543 11.497 10.409 24.261 30.797 12.618 16.354 Li2015[12] 6.604 4.915 16.213 9.109 32.103 9.080 13.004 OSFD2020[15] 3.800 3.637 12.518 13.427 40.042 11.388 14.135 CEEF2022[6] 26.813 26.068 15.886 9.713 40.018 31.475 24.996 本文算法 1.955 2.321 9.936 10.780 31.684 9.297 10.996
下载: 导出CSV
表 2 人工合成夜间有雾图像数据集SSIM和PSNR均值
Table 2. Average values of SSIM and PSNR on artificial synthetic nighttime haze image dataset
下载: 导出CSV

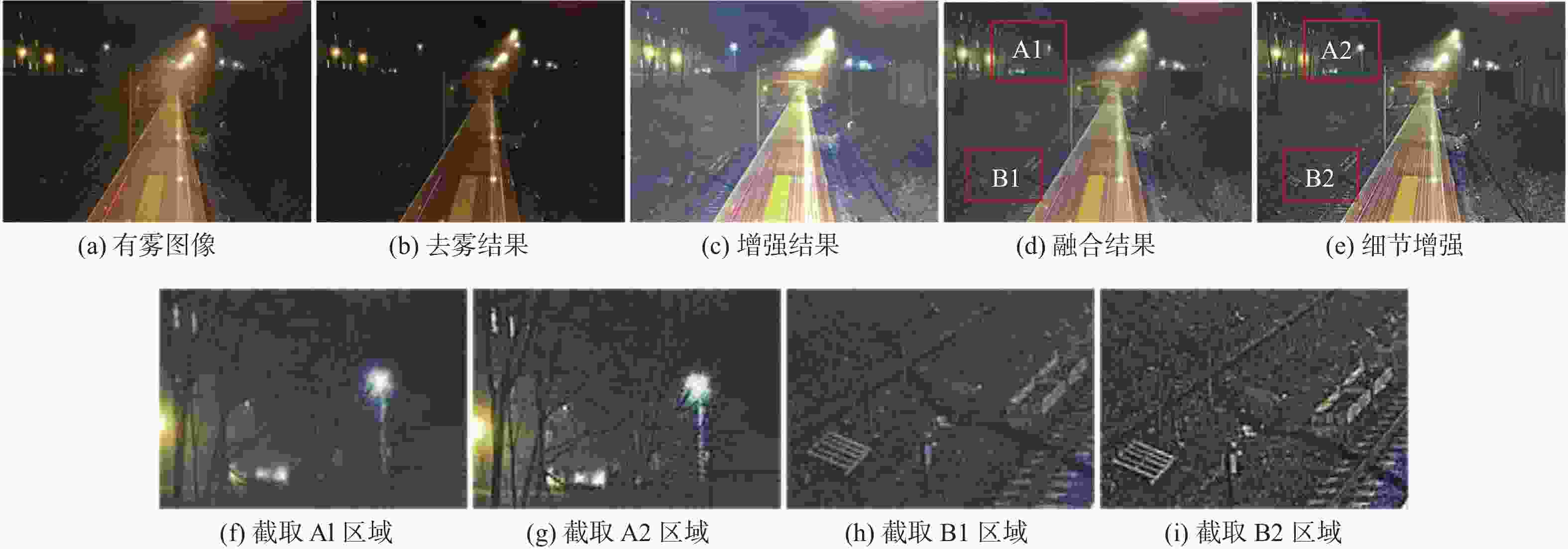

表 5 消融实验的客观评价指标

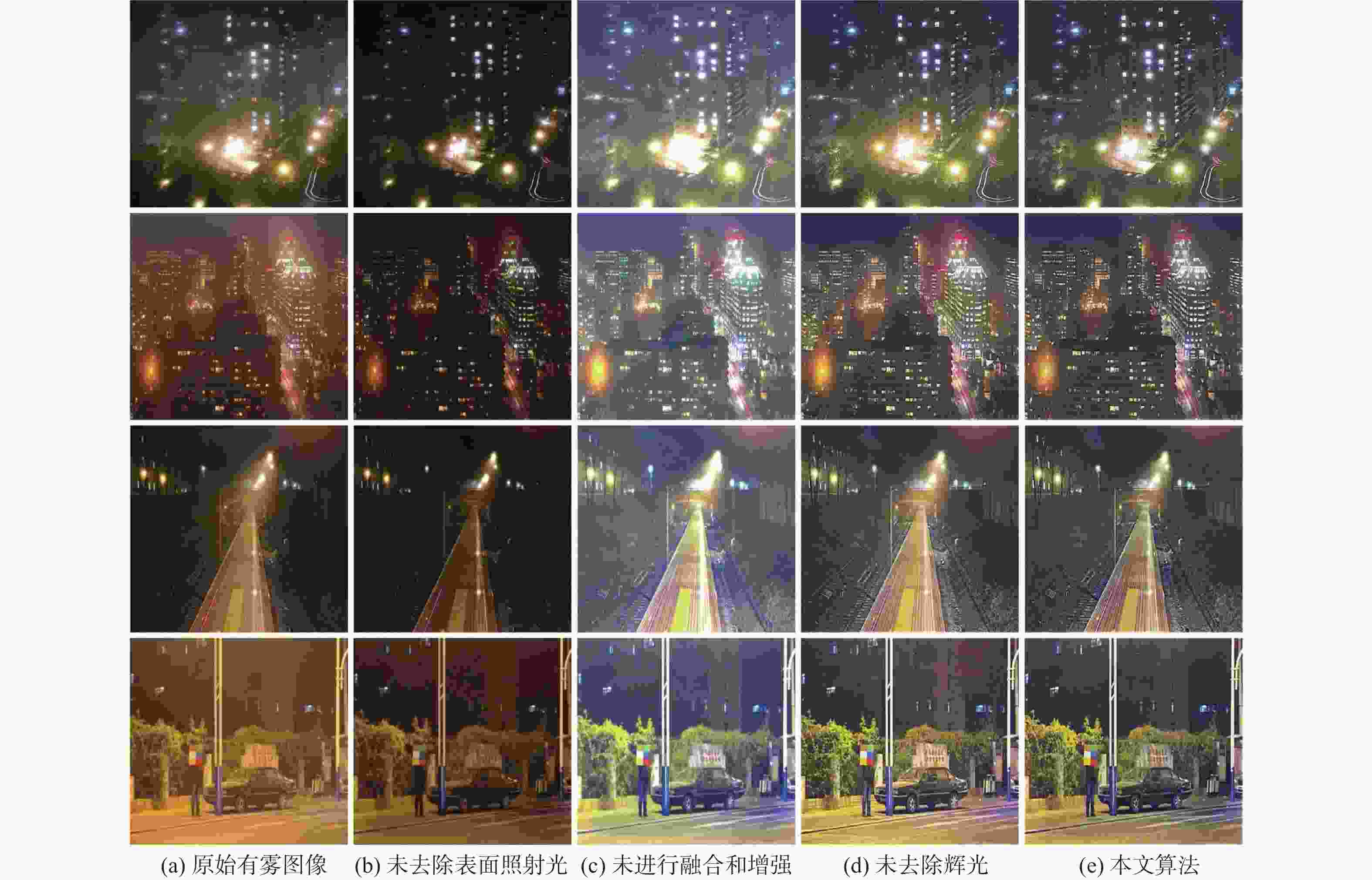

Table 5. Objective evaluation indexes of ablation experiment
方法 AG IE NIQE 原始有雾图像 4.426 7.069 2.786 未去除表面照射光 5.199 6.513 2.791 未进行融合和增强 7.100 7.316 2.266 未去除辉光 10.692 7.373 2.109 本文算法 11.034 7.381 2.073
下载: 导出CSV
-
