基于信噪比的学习型哈里斯鹰优化算法

张林; 沈佳颖; 胡传陆; 朱东林

doi:10.13700/j.bh.1001-5965.2023.0433

基于信噪比的学习型哈里斯鹰优化算法

doi: 10.13700/j.bh.1001-5965.2023.0433

1.
江西理工大学软件工程学院，南昌 330000
2.
浙江师范大学计算机科学与技术学院，金华 321004

基金项目:

国家自然科学基金(62272418, 62002046)

详细信息

通讯作者:
E-mail：2078570674@qq.com

中图分类号: TP301.6
计量
- 文章访问数: 243
- HTML全文浏览量: 50
- PDF下载量: 11
- 被引次数: 0
出版历程
- 收稿日期: 2023-07-03
- 录用日期: 2023-11-27
- 网络出版日期: 2024-02-04
- 整期出版日期: 2025-07-31

Learning Harris Hawks optimization algorithm with signal-to-noise ratio

1.
School of Software Engineering，Jiangxi University of Science and Technology，Nanchang 330000，China
2.
School of Computer Science and Technology，Zhejiang Normal University，Jinhua 321004，China

Funds:

National Natural Science Foundation of China (62272418, 62002046)

More Information

Corresponding author: E-mail：2078570674@qq.com

摘要

摘要:
针对哈里斯鹰优化（HHO）算法存在种群学习性与适应性不足的问题，提出一种基于信噪比的学习型哈里斯鹰优化（SLHHO）算法。该算法通过引入信噪比的概念来判断个体的位置信息，设计了一种协调学习策略，可以更合理地更新种群内个体的位置，进而对逃逸距离重新设计，提升了算法的适应与寻优能力。以12个基准函数为标准，将所提算法与哈里斯鹰算法的变体及其他算法进行性能测试，并在时间复杂度、多样性、探索与开发等评价指标中进行对比分析，结果显示，SLHHO算法具有较强的竞争力与可行性，在压力容器设计问题中，验证了SLHHO算法的实用性。
- 哈里斯鹰优化 /
- 信噪比 /
- 协调学习 /
- 逃逸距离 /
- 基准函数
Abstract:
Aiming at the problem of insufficient population learning and adaptability of the Harris hawks optimization (HHO) algorithm, this paper proposes a learning Harris hawks optimization based on the signal-to-noise ratio（SLHHO）algorithm. By using the signal-to-noise ratio as a metric to assess individual position information, the algorithm creates a coordinated learning strategy that can more realistically update the positions of individuals within the population. It then reworks the escape distance to enhance the algorithm’s capacity for adaptation and optimization seeking. With 12 benchmark functions as the standard, the proposed algorithm was tested for its performance with the variants of the Harris hawk algorithm and other algorithms, and compared and analyzed in the evaluation indexes such as time complexity, diversity, exploration and development, etc. The results show that SLHHO algorithm is highly competitive and feasible, and finally, its practicability is verified in the pressure vessel design problem.
- Harris hawks optimization /
- signal to noise ratio /
- coordinated learning /
- escape distance /
- benchmark function

HTML全文

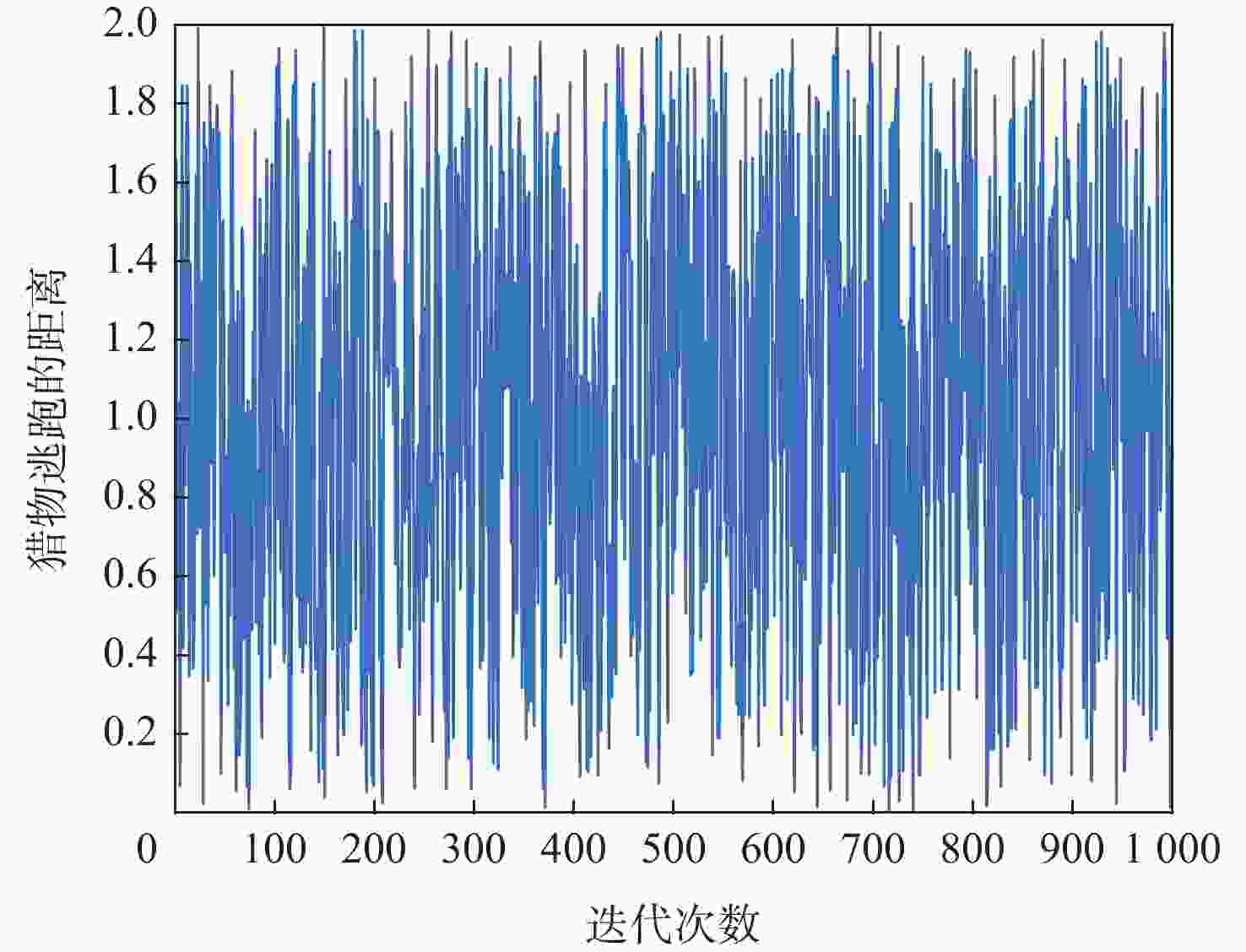

图 1 HHO算法中迭代变化的J

Figure 1. Iterative change of J in HHO algorithm

下载: 全尺寸图片幻灯片

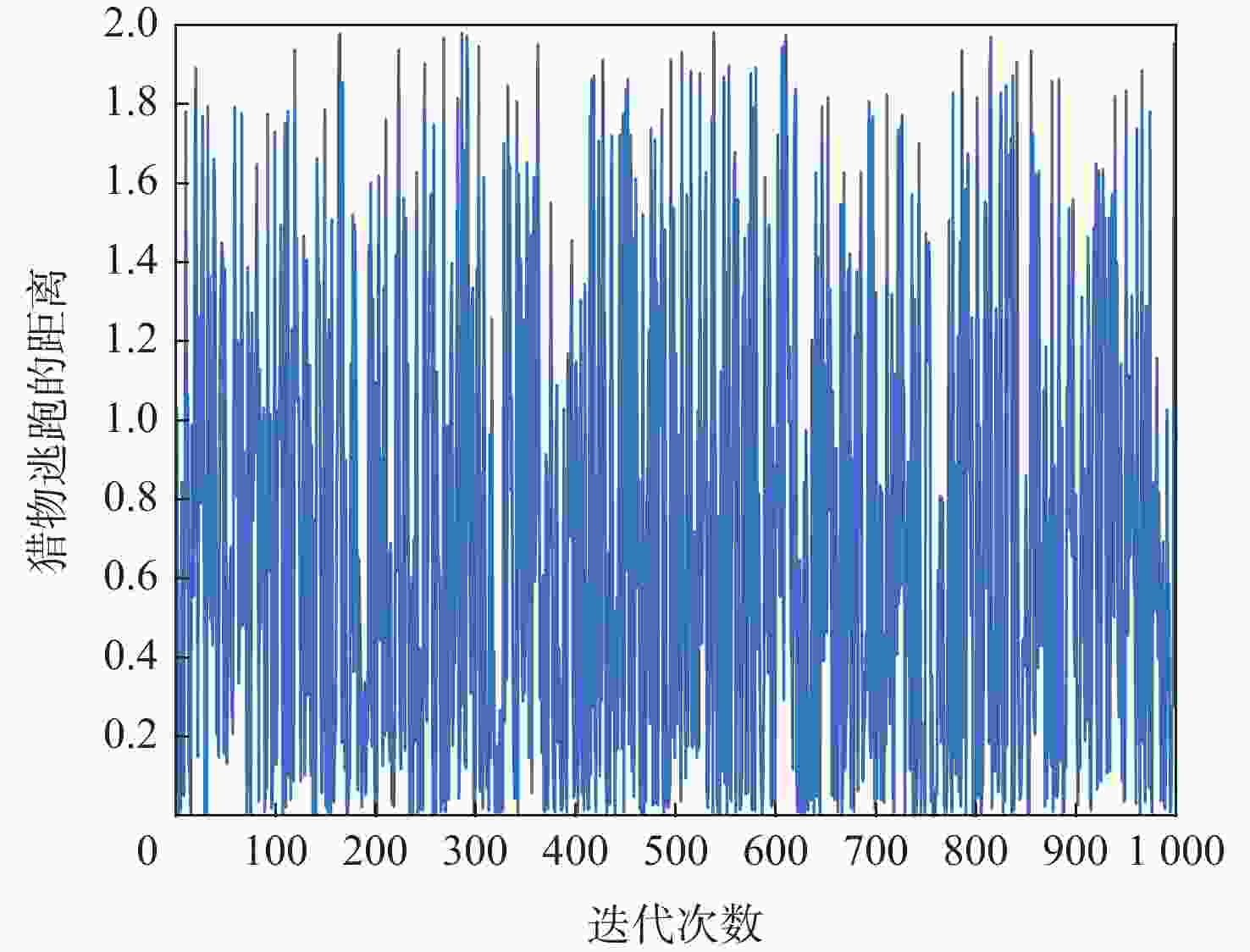

图 2 SLHHO算法中迭代变化的J

Figure 2. Iterative change of J in SLHHO algorithm

下载: 全尺寸图片幻灯片

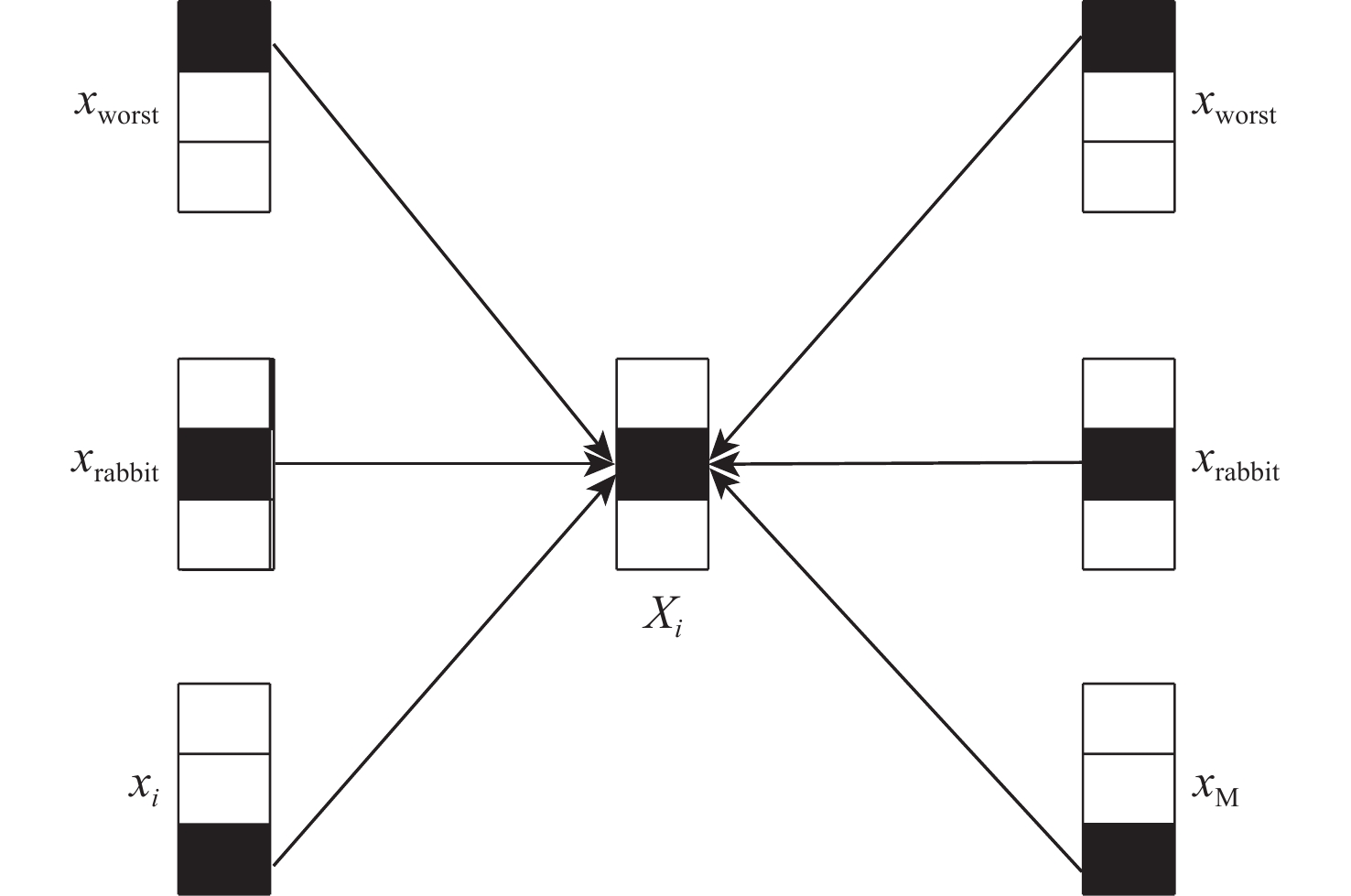

图 3 协调学习原理

Figure 3. Coordinated learning schematic

下载: 全尺寸图片幻灯片

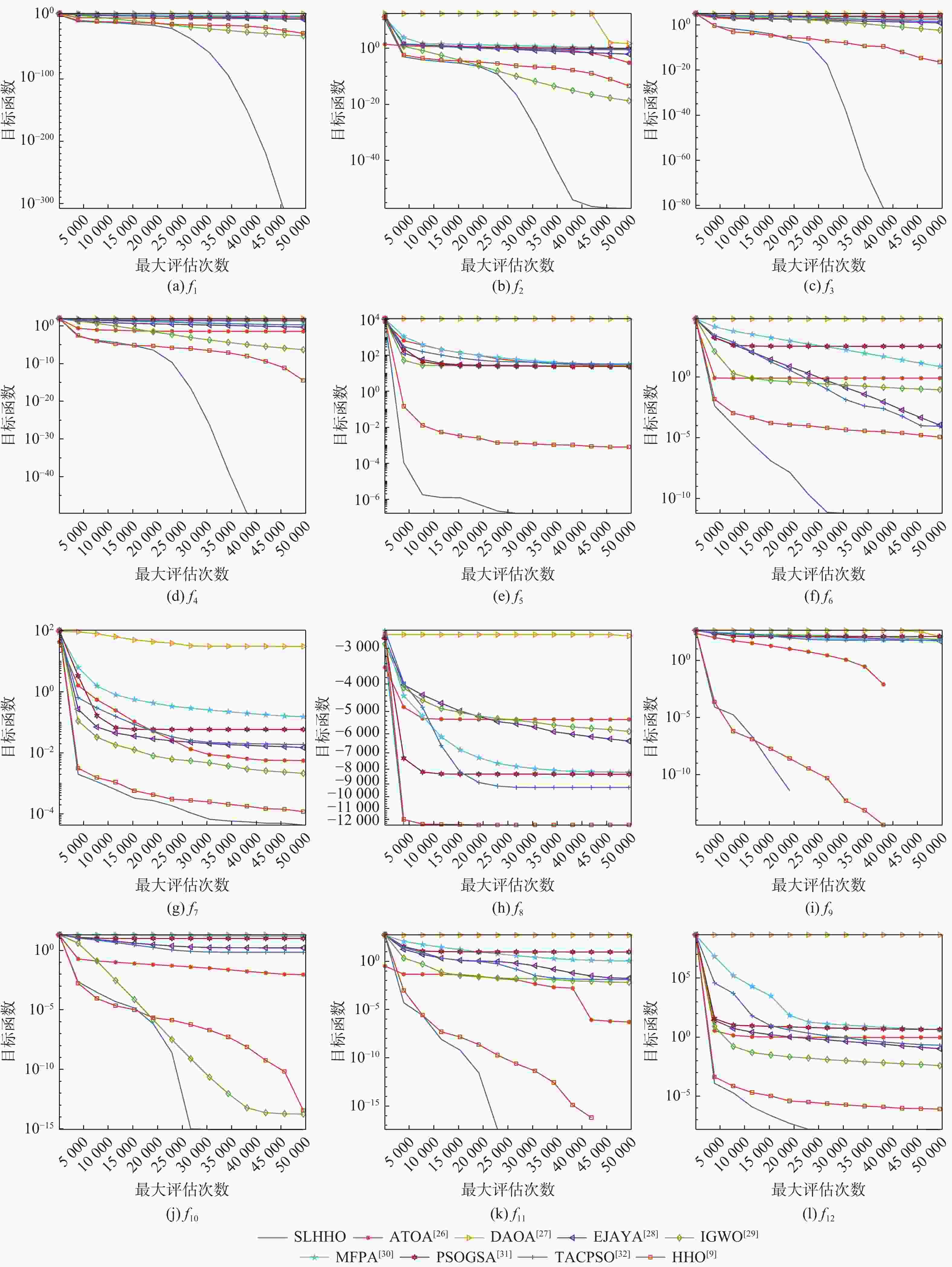

图 4 各算法平均收敛图

Figure 4. Average convergence plot of each algorithm

下载: 全尺寸图片幻灯片

图 5 HHO算法与SLHHO算法的探索与开发分布

Figure 5. Distribution of exploration and development of HHO algorithm and SLHHO algorithm

下载: 全尺寸图片幻灯片

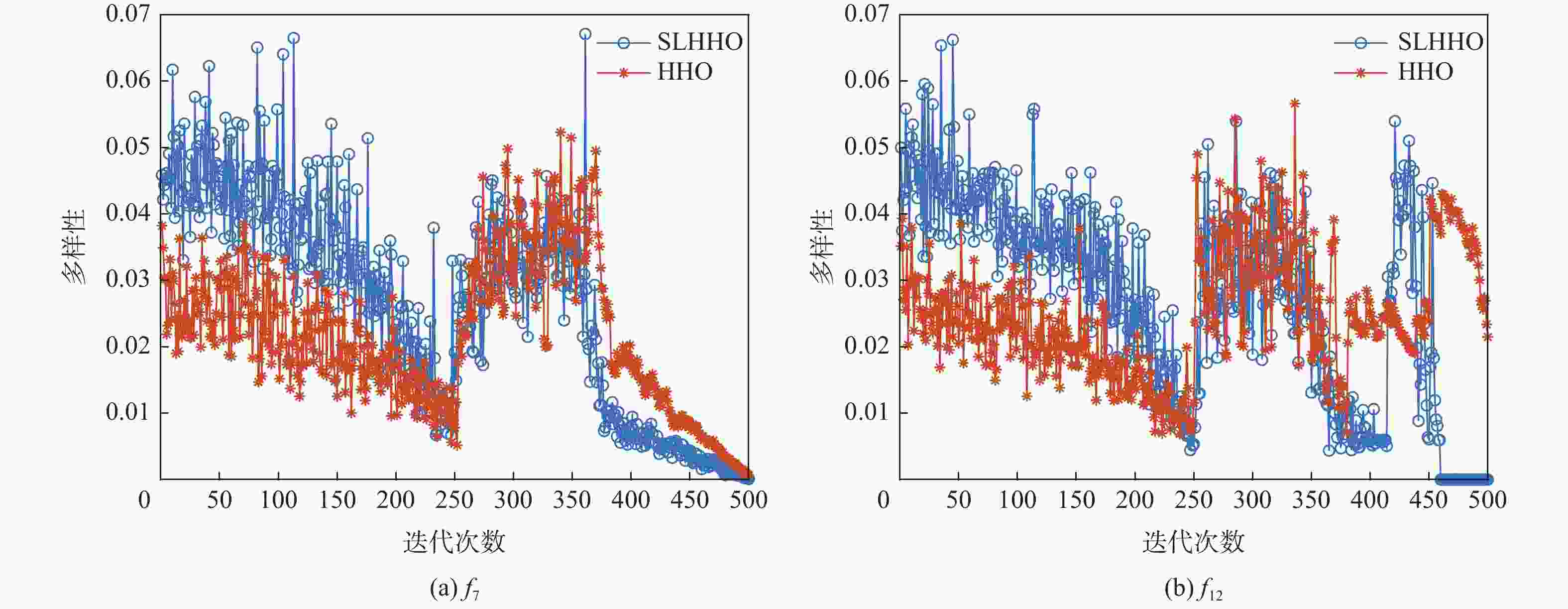

图 6 HHO算法与SLHHO算法的多样性分布

Figure 6. Diversity distribution of HHO algorithm and SLHHO algorithm

下载: 全尺寸图片幻灯片

表 1 各函数信息

Table 1. Information for each function

函数	区间	最小值
$ {f}_{1}\left(x\right)=\displaystyle\sum_{i=1}^{n}{x}_{i}^{2} $	[−100,100]	0
$ {f}_{2}\left(x\right)=\displaystyle\sum_{i=1}^{n}\left\|{x}_{i}\right\|+\prod _{i=1}^{n}\left\|{x}_{i}\right\| $	[−10,10]	0
$ {f}_{3}\left(x\right)=\displaystyle\sum_{i=1}^{n}\left(\displaystyle\sum_{j=1}^{i}{x}_{j}\right)^{2} $	[−100,100]	0
${f}_{4}\left(x\right)={\rm{max} }_{i}\left\{\left\|{x}_{i}\right\|,1 \leqslant i \leqslant n\right\}$	[−100,100]	0
$ {f}_{5}\left(x\right)=\displaystyle\sum _{i=1}^{n-1}[100{\left({x}_{i+1}-{x}_{i}^{2}\right)}^{2}+{({x}_{i}-1)}^{2}] $	[−30,30]	0
$ {f}_{6}\left(x\right)=\displaystyle\sum _{i=1}^{n}{\left( {x}_{i}+0.5 \right)}^{2} $	[−100,100]	0
${f}_{7}\left(x\right)=\displaystyle\sum _{i=1}^{n}{ix}_{i}^{4}+{\rm{random}}\left[\mathrm{0,1}\right)$	[−1.28,1.28]	0
$ {f}_{8}\left(x\right)=\displaystyle\sum _{i=1}^{n}-{x}_{i}\mathrm{s}\mathrm{i}\mathrm{n}\left(\sqrt{\left\|{x}_{i}\right\|}\right) $	[−500,500]	−418.9829n
${f}_{9}\left(x\right)=\displaystyle\sum _{i=1}^{n}({x}_{i}^{2}-10\mathrm{cos}\left(2 \text{π} {x}_{i}\right)+10)$	[−5.12,5.12]	0
${f}_{10}\left(x\right)=-20\mathrm{exp}\left(-0.2\sqrt{\dfrac{1}{n}\sum\limits_{i = 1}^n {x}_{i}^{2} }\right)-\mathrm{e}\mathrm{x}\mathrm{p}\left(\dfrac{1}{n}\sum\limits_{i = 1}^n \mathrm{cos}\left(2 \text{π} {x}_{i}\right)\right)+20+{\rm{e}}$	[−32,32]	0
$ {f}_{11}\left(x\right)=\dfrac{1}{4\;000}\displaystyle\sum _{i=1}^{n}{x}^{2}-\prod _{i=1}^{n}\mathrm{c}\mathrm{o}\mathrm{s}\left(\dfrac{{x}_{i}}{\sqrt{i}}\right) $	[−600,600]	0
$\left\{\begin{gathered}{f}_{12}\left(x\right)=\dfrac{ \text{π} }{n}\left[10\mathrm{sin}\left( \text{π} {y}_{1}\right)+\displaystyle\sum _{i=1}^{n-1}{\left({y}_{i}-1\right)}^{2}\left(1+10{\mathrm{sin} }^{2}\left( \text{π} {y}_{i+1}\right)\right)+{\left({y}_{n}-1\right)}^{2}\right]+\displaystyle\sum _{i=1}^{n}u\left({x}_{i},10, \mathrm{100,4}\right) \\{y}_{i}=1+\dfrac{{x}_{i}+1}{4} \\ u\left({x}_{i},a,k,m\right)=\left\{\begin{array}{*{20}{l}}k{\left({x}_{i}-a\right)}^{m} & {x}_{i} > a\\ 0 & -a < {x}_{i} < a\\ k{\left(-{x}_{i}-a\right)}^{m} & {x}_{i} < -a\end{array}\right. \\\end{gathered}\right. $	$ [-\mathrm{50,50}] $	0

下载: 导出CSV

表 2 各算法需设置的内部参数

Table 2. Internal parameters to be set for each algorithm

算法	参数
ATOA^[26]	f_min=0.2，f_max=1.0，α=5，$ \mu $=0.499，$ \varepsilon $=2.2204$ \times {10}^{-16} $
MFPA^[30]	n=50, P=0.8, γ₁=1, γ₂=3, λ=1.5, cloning array = [9,8,7,6,5,4,3,2,1,1,1,1,1,1]
PSOGSA^[31]	w=rand(1)，c₁=0.5，c₂=1.5，G₀=1，α=20
TACPSO^[32]	W_max=0.9，W_min=0.4，c₁=c₂=2

下载: 导出CSV

表 3 SLHHO算法与其他算法的变体

Table 3. SLHHO algorithm and other algorithm variants

算法	f_min
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	0	8.60×10⁻²³¹	4.89×10⁻¹⁰⁰	1.25×10⁻⁵⁹	0	0	2.82×10⁻⁶	−1.26×10⁴	0	8.88×10⁻¹⁶	0	3.58×10⁻¹⁹
ATOA^[26]	5.59×10⁻¹²	1.18×10⁻³⁹	4.12×10⁻³	2.79×10⁻³	2.88×10⁺¹	5.56×10⁻¹	6.13×10⁻⁴	−6.67×10³	0	3.97×10⁻¹⁰	0	2.53×10⁻¹
DAOA^[27]	4.21×10⁴	0	0	7.57×10¹	7.36×10³	4.61×10⁴	3.49×10⁻²	−4.03×10³	3.57×10¹	8.88×10⁻¹⁶	9.19×10¹	1.85×10⁸
EJAYA^[28]	6.17×10⁻⁶	1.52×10⁻³	1.57	1.27×10⁻¹	2.31×10¹	1.37×10⁻⁵	6.34×10⁻³	−7.30×10³	8.05	3.06×10⁻³	1.48×10⁻⁵	3.39×10⁻⁷
IGWO^[29]	6.14×10⁻³⁴	1.85×10⁻²¹	3.52×10⁻⁵	8.41×10⁻⁹	2.51×10¹	3.93×10⁻²	6.78×10⁻⁴	−7.55×10³	5.68	1.15×10⁻¹⁴	0	1.12×10⁻³
MFPA^[30]	1.27	9.02×10⁻⁴	3.84×10²	8.28	2.20×10¹	2.69	7.71×10⁻²	−1.08×10⁴	2.15×10¹	2.57	8.57×10⁻¹	7.38×10⁻¹
PSOGSA^[31]	4.88×10⁻¹⁹	3.05×10⁻⁹	1.08×10³	1.85×10¹	1.87×10¹	4.84×10⁻¹⁹	1.89×10⁻²	−9.76×10³	7.86×10¹	5.80×10⁻¹⁰	7.94×10⁻³	3.10×10⁻²
TACPSO^[32]	1.59×10⁻⁸	8.43×10⁻⁵	2.02	6.52×10⁻¹	2.78	2.33×10⁻⁹	5.95×10⁻³	−1.04×10⁴	2.89×10¹	1.04×10⁻⁴	4.90×10⁻⁹	4.05×10⁻⁸
HHO^[9]	3.64×10⁻⁴⁴	3.02×10⁻¹⁹	3.15×10⁻³²	2.08×10⁻²⁰	1.14×10⁻⁵	4.97×10⁻⁹	2.58×10⁻⁶	−1.26×10⁴	0	8.88×10⁻¹⁶	0	1.65×10⁻⁸

算法	f_ave
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	0	8.85×10⁻⁵⁸	5.45×10⁻⁸²	1.95×10⁻⁵⁰	1.66×10⁻⁷	6.05×10⁻¹²	4.34×10⁻⁵	−1.26×10⁴	0	8.88×10⁻¹⁶	0	1.48×10⁻⁸
ATOA^[26]	7.56×10⁻⁴	7.02×10⁻⁴	4.00×10²	3.47×10⁻²	2.92×10¹	8.05×10⁻¹	5.62×10⁻³	−5.34×10³	0	9.30×10⁻³	5.17×10⁻⁷	9.47×10⁻¹
DAOA^[27]	6.12×10⁴	4.23×10¹	7.82×10⁴	8.40×10¹	1.06×10⁴	5.95×10⁴	3.11×10¹	−2.75×10³	1.13×10²	1.08×10¹	5.13×10²	4.69×10⁸
EJAYA^[28]	7.52×10⁻⁵	6.34×10⁻³	9.76	4.80×10⁻¹	2.41×10⁺¹	9.62×10⁻⁵	1.48×10⁻²	−6.37×10³	5.00×10¹	1.64	1.70×10⁻²	1.03×10⁻¹
IGWO^[29]	1.04×10⁻³¹	8.36×10⁻²¹	4.15×10⁻³	4.58×10⁻⁷	2.55×10¹	8.72×10⁻²	2.14×10⁻³	−5.88×10³	6.45×10¹	1.76×10⁻¹⁴	6.55×10⁻³	3.80×10⁻³
MFPA^[30]	1.12×10¹	3.29×10⁻²	1.63×10³	1.56×10¹	2.99×10¹	6.86	1.54×10⁻¹	−8.20×10³	5.66×10¹	1.50×10¹	1.07	4.24
PSOGSA^[31]	2.02×10⁻¹	1.87×10⁻²	6.94×10³	3.56×10¹	2.44×10¹	3.37×10²	5.89×10⁻²	−8.32×10³	1.23×10²	1.02×10¹	9.21	4.50
TACPSO^[32]	6.55×10⁻⁵	4.87×10⁻³	4.29×10¹	2.02	3.33×10¹	8.81×10⁻⁵	1.88×10⁻²	−9.27×10³	5.82×10¹	7.01×10⁻¹	1.32×10⁻²	2.07×10⁻¹
HHO^[9]	1.44×10⁻²⁷	2.18×10⁻¹⁵	3.00×10⁻¹⁷	1.83×10⁻¹⁵	8.10×10⁻⁴	1.08×10⁻⁵	1.12×10⁻⁴	−1.26×10⁴	0	2.79×10⁻¹⁴	0	7.97×10⁻⁷

算法	f_std
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	0	4.85×10⁻⁵⁷	2.22×10⁻⁸¹	9.12×10⁻⁵⁰	9.07×10⁻⁷	2.63×10⁻¹¹	4.05×10⁻⁵	2.48×10⁻²	0	1.00×10⁻³¹	0	7.42×10⁻⁸
ATOA^[26]	9.91×10⁻⁴	3.83×10⁻³	2.18×10⁺³	1.83×10⁻²	1.16	1.83×10⁻¹	4.12×10⁻³	5.50×10²	0	1.23×10⁻²	2.83×10⁻⁶	5.89×10⁻¹
DAOA^[27]	6.62×10³	1.35×10¹	3.41×10⁴	3.79	1.37×10³	5.42×10³	2.55×10¹	4.73×10²	3.60×10¹	9.62	1.03×10²	1.08×10⁸
EJAYA^[28]	9.26×10⁻⁵	4.82×10⁻³	9.07	2.16×10⁻¹	5.34×10⁻¹	7.18×10⁻⁵	4.96×10⁻³	6.31×10²	3.22×10¹	6.13×10⁻¹	3.75×10⁻²	1.41×10⁻¹
IGWO^[29]	1.84×10⁻³¹	7.11×10⁻²¹	9.53×10⁻³	3.44×10⁻⁷	1.97×10⁻¹	7.33×10⁻²	1.22×10⁻³	6.19×10²	4.94×10¹	3.51×10⁻¹⁵	1.30×10⁻²	2.34×10⁻³
MFPA^[30]	1.93×10¹	8.68×10⁻²	7.72×10²	4.10	7.96	4.40	4.36×10⁻²	1.12×10³	1.81×10¹	6.80	7.77×10⁻²	2.31
PSOGSA^[31]	5.74×10⁻¹	5.64×10⁻²	3.89×10³	1.96×10¹	1.92	1.84×10³	1.62×10⁻²	7.08×10²	2.83×10¹	6.78	2.75×10¹	3.25
TACPSO^[32]	3.28×10⁻⁴	4.94×10⁻³	4.02×10¹	1.32	2.33×10¹	4.33×10⁻⁴	7.82×10⁻³	6.19×10²	1.90×10¹	7.05×10⁻¹	1.44×10⁻²	2.79×10⁻¹
HHO^[9]	6.83×10⁻²⁷	4.05×10⁻¹⁵	1.64×10⁻¹⁶	4.48×10⁻¹⁵	1.13×10⁻³	1.82×10⁻⁵	1.45×10⁻⁴	1.75×10⁻¹	0	1.31×10⁻¹³	0	8.28×10⁻⁷

算法	f_cm
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO
ATOA^[26]	+	+	+	+	+	+	+	+	=	+	+	+
DAOA^[27]	+	+	+	+	+	+	+	+	+	+	+	+
EJAYA^[28]	+	+	+	+	+	+	+	+	+	+	+	+
IGWO^[29]	+	+	+	+	+	+	+	+	+	+	+	+
MFPA^[30]	+	+	+	+	+	+	+	+	+	+	+	+
PSOGSA^[31]	+	+	+	+	+	+	+	+	+	+	+	+
TACPSO^[32]	+	+	+	+	+	+	+	+	+	+	+	+
HHO^[9]	+	+	+	+	+	+	+	+	=	+	=	+

算法	f_rank
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	1	1	1	1	1	1	1	1	1	1	1	1
ATOA^[26]	6	4	6	4	6	6	4	8	1	4	2	6
DAOA^[27]	9	9	9	9	9	9	9	9	6	8	8	9
EJAYA^[28]	5	6	4	5	3	4	5	6	2	6	5	4
IGWO^[29]	2	2	3	3	5	5	3	7	5	2	3	3
MFPA^[30]	8	8	7	7	7	7	8	5	3	9	6	7
PSOGSA^[31]	7	7	8	8	4	8	7	4	7	7	7	8
TACPSO^[32]	4	5	5	6	8	3	6	3	4	5	4	5
HHO^[9]	3	3	2	2	2	2	2	2	1	3	1	2

下载: 导出CSV

表 4 SLHHO算法与HHO算法的变体（维度为30）

Table 4. SLHHO algorithm and HHO algorithm variants (dim=30)

算法	f_min
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	0	0	4.89×10⁻¹⁰⁰	1.25×10⁻⁵⁹	0	0	2.82×10⁻⁶	−8.60	0	8.88×10⁻¹⁶	0	3.58×10⁻¹⁹
NCHHO^[33]	3.93×10⁻²⁴⁶	3.93×10⁻²⁴⁶	1.75×10⁻²²⁰	1.73×10⁻¹¹⁵	2.88×10¹	1.62	4.24×10⁻⁶	−6.80	0	8.88×10⁻¹⁶	0	4.56×10⁻²
LMHHO^[34]	3.07×10⁻⁴⁴	3.07×10⁻⁴⁴	3.01×10⁻⁴⁴	1.31×10⁻²⁵	7.35×10⁻⁹	1.33×10⁻¹⁰	5.00×10⁻⁷	−8.60	0	8.88×10⁻¹⁶	0	5.54×10⁻¹⁰
LHHO^[35]	3.14×10⁻⁷⁵	3.14×10⁻⁷⁵	3.09×10⁻⁷⁰	4.16×10⁻³⁹	2.27×10⁻⁶	1.10×10⁻¹⁰	1.23×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	3.61×10⁻¹⁰
THHO^[10]	1.28×10⁻²⁴⁶	1.28×10⁻²⁴⁶	4.75×10⁻²⁴⁶	2.62×10⁻¹²⁷	7.20×10⁻⁸	2.95×10⁻¹³	1.48×10⁻⁶	−8.60	0	8.88×10⁻¹⁶	0	9.20×10⁻¹²
DAHHO^[20]	2.03×10⁻⁶⁰	2.03×10⁻⁶⁰	1.30×10⁻⁵⁰	1.03×10⁻³⁰	2.54×10⁻⁶	4.11×10⁻⁸	2.37×10⁻⁶	−8.60	0	8.88×10⁻¹⁶	0	6.93×10⁻⁸
JOS-HHO^[36]	1.50×10⁻¹⁶	1.50×10⁻¹⁶	1.39×10⁻¹⁵	1.11×10⁻⁹	8.06×10⁻⁵	5.24×10⁻⁵	6.60×10⁻⁶	−8.60	0	8.77×10⁻¹¹	0	9.23×10⁻⁷
HHO-1	8.19×10⁻⁴²	8.19×10⁻⁴²	2.68×10⁻³⁰	3.25×10⁻¹⁸	0	1.51×10⁻⁸	4.06×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	3.74×10⁻¹⁰
HHO-2	7.82×10⁻¹²³	7.82×10⁻¹²³	4.38×10⁻¹⁰⁴	1.48×10⁻⁵⁹	5.19×10⁻⁸	5.48×10⁻⁷	2.88×10⁻⁶	−8.60	0	8.88×10⁻¹⁶	0	5.90×10⁻²⁴

算法	f_ave
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	0	8.85×10⁻⁵⁸	5.45×10⁻⁸²	1.95×10⁻⁵⁰	1.66×10⁻⁷	6.05×10⁻¹²	4.34×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	1.48×10⁻⁸
NCHHO^[33]	3.61×10⁻²²²	9.70×10⁻¹¹⁵	3.26×10⁻²⁰²	2.25×10⁻¹⁰⁶	2.88×10¹	2.36	6.59×10⁻⁵	−6.16×10¹	0	8.88×10⁻¹⁶	0	1.02×10⁻¹
LMHHO^[34]	1.33×10⁻²⁹	6.45×10⁻¹⁶	7.63×10⁻²⁸	3.78×10⁻¹⁶	1.70×10⁻⁴	5.98×10⁻⁷	6.22×10⁻⁵	−8.60	0	1.36×10⁻¹⁵	0	2.11×10⁻⁷
LHHO^[35]	5.71×10⁻⁶⁴	4.29×10⁻³²	2.86×10⁻⁵⁴	8.66×10⁻³³	3.85×10⁻³	2.21×10⁻⁶	9.27×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	1.03×10⁻⁶
THHO^[10]	3.67×10⁻²³⁴	9.42×10⁻¹¹⁷	3.74×10⁻²²⁶	9.85×10⁻¹¹⁷	1.46×10⁻³	6.16×10⁻⁷	7.59×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	2.46×10⁻⁶
DAHHO^[20]	1.36×10⁻⁴⁷	2.04×10⁻²⁶	2.55×10⁻³⁵	4.94×10⁻²⁶	5.28×10⁻³	4.96×10⁻⁵	8.77×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	3.76×10⁻⁶
JOS-HHO^[36]	6.37×10⁻¹⁰	6.25×10⁻⁶	2.59×10⁻⁷	6.87×10⁻⁶	1.51×10⁻²	1.47×10⁻³	3.38×10⁻⁴	−8.60	4.15×10⁻¹⁰	1.86×10⁻⁶	3.34×10⁻⁹	7.92×10⁻⁵
HHO-1	5.49×10⁻²⁴	1.68×10⁻¹²	3.18×10⁻¹²	6.57×10⁻¹³	1.53×10⁻²¹	4.75×10⁻⁵	2.45×10⁻⁴	−8.60	0	1.30×10⁻¹²	0	2.63×10⁻⁶
HHO-2	9.46×10⁻¹⁰²	2.31×10⁻⁵⁵	3.35×10⁻⁸⁹	7.67×10⁻⁵³	1.84×10⁻⁴	3.42×10⁻⁵	5.91×10⁻⁵	−8.60	0	8.88×10⁻¹⁶	0	8.22×10⁻¹⁴

算法	f_std
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	0	4.85×10⁻⁵⁷	2.22×10⁻⁸¹	9.12×10⁻⁵⁰	9.07×10⁻⁷	2.63×10⁻¹¹	4.05×10⁻⁵	2.48×10⁻²	0	1.00×10⁻³¹	0	7.42×10⁻⁸
NCHHO^[33]	0	5.21×10⁻¹¹⁴	0	1.18×10⁻¹⁰⁵	2.11×10⁻²	4.51×10⁻¹	7.15×10⁻⁵	1.74×10⁺³	0	1.00×10⁻³¹	0	3.90×10⁻²
LMHHO^[34]	5.41×10⁻²⁹	1.59×10⁻¹⁵	3.94×10⁻²⁷	1.78×10⁻¹⁵	4.21×10⁻⁴	9.84×10⁻⁷	5.70×10⁻⁵	3.49×10⁻²	0	2.59×10⁻¹⁵	0	4.59×10⁻⁷
LHHO^[35]	1.68×10⁻⁶³	1.71×10⁻³¹	8.21×10⁻⁵⁴	2.98×10⁻³²	7.80×10⁻³	3.19×10⁻⁶	5.07×10⁻⁵	1.82×10⁻²	0	1.00×10⁻³¹	0	1.77×10⁻⁶
THHO^[10]	0	5.10×10⁻¹¹⁶	0	5.10×10⁻¹¹⁶	5.77×10⁻³	1.92×10⁻⁶	8.68×10⁻⁵	1.16	0	1.00×10⁻³¹	0	7.00×10⁻⁶
DAHHO^[20]	7.25×10⁻⁴⁷	8.76×10⁻²⁶	1.09×10⁻³⁴	1.25×10⁻²⁵	5.54×10⁻³	7.85×10⁻⁵	1.04×10⁻⁴	5.42×10⁻¹	0	1.00×10⁻³¹	0	5.35×10⁻⁶
JOS-HHO^[36]	1.97×10⁻⁹	8.74×10⁻⁶	7.26×10⁻⁷	1.02×10⁻⁵	2.11×10⁻²	1.77×10⁻³	2.93×10⁻⁴	1.35	8.53×10⁻¹⁰	2.66×10⁻⁶	1.45×10⁻⁸	7.29×10⁻⁵
HHO-1	2.82×10⁻²³	4.49×10⁻¹²	1.22×10⁻¹¹	1.90×10⁻¹²	8.40×10⁻²¹	6.01×10⁻⁵	2.08×10⁻⁴	5.75×10⁻²	0	5.98×10⁻¹²	0	3.55×10⁻⁶
HHO-2	5.18×10⁻¹⁰¹	8.26×10⁻⁵⁵	1.83×10⁻⁸⁸	2.63×10⁻⁵²	1.96×10⁻⁴	4.72×10⁻⁵	5.16×10⁻⁵	3.45×10⁻²	0	1.00×10⁻³¹	0	4.06×10⁻¹³

下载: 导出CSV

表 5 SLHHO算法与HHO算法的变体(维度为100)

Table 5. SLHHO algorithm and HHO algorithm variants (dim=100)

算法	f_min
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	1.10×10⁻¹¹²	2.48×10⁻⁶⁸	2.05×10⁻¹⁰⁵	2.70×10⁻⁶⁰	0	5.56×10⁻⁸	1.85×10⁻⁶	−37.9	0	8.88×10⁻¹⁶	0	1.54×10⁻²⁰
NCHHO^[33]	1.25×10⁻²³⁹	6.64×10⁻¹²²	3.12×10⁻²¹⁴	1.28×10⁻¹¹⁶	9.82×10¹	5.87	2.51×10⁻⁶	−36.6	0	8.88×10⁻¹⁶	0	1.15×10⁻¹
LMHHO^[34]	2.28×10⁻⁴²	5.70×10⁻²³	9.74×10⁻³⁸	2.61×10⁻²³	2.51×10⁻⁷	5.25×10⁻¹¹	4.95×10⁻⁶	−37.9	0	8.88×10⁻¹⁶	0	2.49×10⁻¹²
LHHO^[35]	6.78×10⁻⁸⁰	9.25×10⁻³⁸	8.52×10⁻⁷¹	6.23×10⁻³⁹	1.22×10⁻⁵	3.99×10⁻⁸	9.72×10⁻⁶	−37.9	0	8.88×10⁻¹⁶	0	7.51×10⁻¹¹
THHO^[10]	7.71×10⁻²⁵⁴	9.11×10⁻¹²⁵	2.86×10⁻²⁴⁸	1.53×10⁻¹²⁶	1.27×10⁻⁷	1.66×10⁻¹¹	3.42×10⁻⁷	−37.9	0	8.88×10⁻¹⁶	0	8.16×10⁻¹³
DAHHO^[20]	6.55×10⁻⁵⁸	2.58×10⁻³²	3.92×10⁻⁵⁰	3.62×10⁻³²	0	1.10×10⁻⁶	1.41×10⁻⁵	−37.9	0	8.88×10⁻¹⁶	0	5.71×10⁻⁹
JOS-HHO^[36]	2.34×10⁻¹⁷	2.57×10⁻⁸	1.81×10⁻¹¹	2.17×10⁻¹²	7.43×10⁻³	2.72×10⁻⁴	1.72×10⁻⁵	−37.9	0	1.46×10⁻¹⁰	1.89×10⁻¹⁵	7.14×10⁻⁷
HHO-1	9.94×10⁻²¹	2.09×10⁻¹¹	2.41×10⁻²⁰	2.00×10⁻¹⁰	2.11×10⁻⁵	4.57×10⁻⁵	3.40×10⁻⁶	−37.9	0	2.30×10⁻¹¹	0	6.70×10⁻⁷
HHO-2	9.26×10⁻⁷⁷	4.64×10⁻⁴¹	5.63×10⁻⁶³	6.69×10⁻³⁹	7.85×10⁻⁵	1.53×10⁻⁸	1.24×10⁻⁷	−37.9	0	8.88×10⁻¹⁶	0	1.32×10⁻⁸

算法	f_ave
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	5.33×10⁻⁹⁹	3.46×10⁻⁵⁴	1.73×10⁻⁷⁷	2.41×10⁻⁵⁰	0	2.01×10⁻⁴	4.90×10⁻⁵	−37.9	0	8.88×10⁻¹⁶	0	2.89×10⁻⁹
NCHHO^[33]	5.23×10⁻²²⁰	2.09×10⁻¹¹⁵	2.42×10⁻¹⁹⁸	3.53×10⁻¹⁰⁷	9.83×10¹	7.95	8.19×10⁻⁵	−21.2	0	8.88×10⁻¹⁶	0	1.87×10⁻¹
LMHHO^[34]	1.16×10⁻³⁰	2.17×10⁻¹⁴	1.01×10⁻²⁵	3.41×10⁻¹⁶	5.20×10⁻⁴	1.74×10⁻⁶	7.11×10⁻⁵	−37.9	0	1.72×10⁻¹⁵	0	1.86×10⁻⁸
LHHO^[35]	1.56×10⁻⁶¹	3.36×10⁻³¹	6.89×10⁻⁴⁸	5.71×10⁻³²	1.21×10⁻²	1.97×10⁻⁵	1.05×10⁻⁴	−37.9	0	8.88×10⁻¹⁶	0	8.80×10⁻⁷
THHO^[10]	5.65×10⁻²²⁹	2.20×10⁻¹¹⁷	2.12×10⁻²²⁸	2.10×10⁻¹¹⁷	2.26×10⁻³	8.72×10⁻⁶	4.88×10⁻⁵	−37.9	0	8.88×10⁻¹⁶	0	1.94×10⁻⁸
DAHHO^[20]	1.07×10⁻⁴⁶	1.42×10⁻²⁶	1.20×10⁻³⁷	7.80×10⁻²⁶	3.32×10⁻⁶	2.26×10⁻³	3.04×10⁻⁴	−37.9	0	8.88×10⁻¹⁶	0	9.55×10⁻⁶
JOS-HHO^[36]	4.38×10⁻⁹	3.01×10⁻⁵	6.64×10⁻⁵	5.43×10⁻⁶	1.76×10⁻¹	8.32×10⁻³	2.71×10⁻⁴	−37.9	7.18×10⁻⁹	4.93×10⁻⁶	5.14×10⁻⁹	5.67×10⁻⁵
HHO-1	2.98×10⁻¹⁰	3.02×10⁻⁷	3.06×10⁻⁸	5.27×10⁻⁷	5.05×10⁻²	5.54×10⁻³	1.22×10⁻⁴	−37.9	3.16×10⁻¹²	3.93×10⁻⁸	2.18×10⁻¹²	1.50×10⁻⁵
HHO-2	5.80×10⁻⁶²	2.03×10⁻³⁴	5.49×10⁻⁴⁷	4.17×10⁻³²	1.74×10⁻³	4.57×10⁻⁵	3.27×10⁻⁵	−37.9	0	8.88×10⁻¹⁶	0	4.15×10⁻⁷

算法	f_std
算法	f₁	f₂	f₃	f₄	f₅	f₆	f₇	f₈	f₉	f₁₀	f₁₁	f₁₂
SLHHO	2.88×10⁻⁹⁸	1.84×10⁻⁵³	8.16×10⁻⁷⁷	7.89×10⁻⁵⁰	0	3.14×10⁻⁴	3.69×10⁻⁵	2.41×10⁻¹	0	1.00×10⁻³¹	0	6.78×10⁻⁹
NCHHO^[33]	0	8.89×10⁻¹¹⁵	0	1.77×10⁻¹⁰⁶	6.68×10⁻²	1.95	7.59×10⁻⁵	8.50×10³	0	1.00×10⁻³¹	0	6.79×10⁻²
LMHHO^[34]	4.72×10⁻³⁰	8.97×10⁻¹⁴	5.52×10⁻²⁵	1.27×10⁻¹⁵	1.25×10⁻³	3.20×10⁻⁶	6.49×10⁻⁵	1.14	0	3.32×10⁻¹⁵	0	3.66×10⁻⁸
LHHO^[35]	8.32×10⁻⁶¹	1.75×10⁻³⁰	3.13×10⁻⁴⁷	2.76×10⁻³¹	2.22×10⁻²	3.56×10⁻⁵	6.56×10⁻⁵	3.48×10⁻²	0	1.00×10⁻³¹	0	1.28×10⁻⁶
THHO^[10]	0	1.08×10⁻¹¹⁶	0	7.70×10⁻¹¹⁷	8.19×10⁻³	2.88×10⁻⁵	4.07×10⁻⁵	3.57	0	1.00×10⁻³¹	0	5.66×10⁻⁸
DAHHO^[20]	5.66×10⁻⁴⁶	4.52×10⁻²⁶	4.68×10⁻³⁷	1.99×10⁻²⁵	1.82×10⁻⁵	3.11×10⁻³	3.33×10⁻⁴	3.05	0	1.00×10⁻³¹	0	2.15×10⁻⁵
JOS-HHO^[36]	1.07×10⁻⁸	4.91×10⁻⁵	2.04×10⁻⁴	1.09×10⁻⁵	2.07×10⁻¹	8.01×10⁻³	2.48×10⁻⁴	2.68×10¹	3.64×10⁻⁸	1.20×10⁻⁵	1.19×10⁻⁸	6.68×10⁻⁵
HHO-1	1.62×10⁻⁹	6.43×10⁻⁷	6.42×10⁻⁸	1.47×10⁻⁶	6.57×10⁻²	4.61×10⁻³	1.76×10⁻⁴	7.88	1.14×10⁻¹¹	7.55×10⁻⁸	6.06×10⁻¹²	2.02×10⁻⁵
HHO-2	3.15×10⁻⁶¹	9.48×10⁻³⁴	2.23×10⁻⁴⁶	1.51×10⁻³¹	2.60×10⁻³	6.19×10⁻⁵	2.90×10⁻⁵	3.59×10⁻¹	0	0	0	5.59×10⁻⁷

下载: 导出CSV

表 6 不同维度下SLHHO算法与HHO算法的变体排序值

Table 6. Variant sorting values of SLHHO algorithm and HHO algorithm in different dimensions

算法	f_rank（维度为30）	f_rank（维度为100）
SLHHO	2.9167	3.1667
NCHHO^[33]	5.1250	5.0417
LMHHO^[34]	4.9583	4.7917
LHHO^[35]	4.8333	4.5833
THHO^[10]	3.3333	2.6667
DAHHO^[20]	5.6667	5.2500
JOS-HHO^[36]	8.3750	8.2917
HHO-1	6.2083	7.3750
HHO-2	3.5833	3.8333

下载: 导出CSV

表 7 压力容器设计问题优化结果

Table 7. Pressure vessel design problem optimization results

函数	f_best	f_mean	f_worst	T_s/mm	T_h/mm	R/mm	L/mm
SLHHO	5887.5364	5974.2155	7225.6231	0.7786	0.3853	40.3403	199.7153
HHO^[9]	5981.9440	6909.8281	7654.0635	1.1752	0.5786	59.8934	37.9625
PSO^[1]	5951.9270	6200.6677	7217.0457	0.8153	0.4030	42.2448	174.8309
GWO^[3]	5981.9440	6909.8281	7654.0635	1.1752	0.5786	59.8934	37.9625
WOA^[4]	6103.9794	7578.9269	10436.7044	0.8442	0.4089	42.7487	168.7424

下载: 导出CSV

参考文献(39)

[1]	KENNEDY J, EBERHART R. Particle swarm optimization[C]//Proceedings of the ICNN'95 - International Conference on Neural Networks. Piscataway: IEEE Press, 1995: 1942-1948.
[2]	DORIGO M, BIRATTARI M, STUTZLE T. Ant colony optimization[J]. IEEE Computational Intelligence Magazine, 2006, 1(4): 28-39. doi: 10.1109/MCI.2006.329691
[3]	MIRJALILI S, MIRJALILI S M, LEWIS A. Grey wolf optimizer[J]. Advances in Engineering Software, 2014, 69: 46-61. doi: 10.1016/j.advengsoft.2013.12.007
[4]	MIRJALILI S, LEWIS A. The whale optimization algorithm[J]. Advances in Engineering Software, 2016, 95: 51-67. doi: 10.1016/j.advengsoft.2016.01.008
[5]	XUE J K, SHEN B. A novel swarm intelligence optimization approach: sparrow search algorithm[J]. Systems Science & Control Engineering, 2020, 8(1): 22-34.
[6]	ZHAO W G, ZHANG Z X, WANG L Y. Manta ray foraging optimization: an effective bio-inspired optimizer for engineering applications[J]. Engineering Applications of Artificial Intelligence, 2020, 87: 103300. doi: 10.1016/j.engappai.2019.103300
[7]	XIE L, HAN T, ZHOU H, et al. Tuna swarm optimization: a novel swarm-based metaheuristic algorithm for global optimization[J]. Computational Intelligence and Neuroscience, 2021, 2021(1): 9210050. doi: 10.1155/2021/9210050
[8]	JIANG X Y, LI S. BAS: beetle antennae search algorithm for optimization problems[EB/OL]. (2017-10-30)[2023-02-01]. http://arxiv.org/abs/1710.10724.
[9]	HEIDARI A A, MIRJALILI S, FARIS H, et al. Harris hawks optimization: algorithm and applications[J]. Future Generation Computer Systems, 2019, 97: 849-872. doi: 10.1016/j.future.2019.02.028
[10]	JIAO S, CHONG G S, HUANG C C, et al. Orthogonally adapted Harris hawks optimization for parameter estimation of photovoltaic models[J]. Energy, 2020, 203: 117804. doi: 10.1016/j.energy.2020.117804
[11]	闫晓斌, 方洋旺, 彭维仕. 基于自适应高斯变异的多目标哈里斯鹰优化算法[J]. 北京麻豆精品秘国产传媒学报, 2024, 50(8): 2636-2645. YAN X B, FANG Y W, PENG W S. Multi-objective Harris hawk optimization algorithm based on adaptive Gaussian mutation[J]. Journal of Beijing University of Aeronautics and Astronautics, 2024, 50(8): 2636-2645(in Chinese).
[12]	ELGAMAL Z M, YASIN N B M, TUBISHAT M, et al. An improved Harris hawks optimization algorithm with simulated annealing for feature selection in the medical field[J]. IEEE Access, 2020, 8: 186638-186652. doi: 10.1109/ACCESS.2020.3029728
[13]	胡春安, 熊昱然. 多策略改进的混沌哈里斯鹰优化算法[J]. 计算机工程与科学, 2023, 45(9): 1648-1660. doi: 10.3969/j.issn.1007-130X.2023.09.014 HU C A, XIONG Y R. A multi-strategy improved chaotic Harris hawk optimization algorithm[J]. Computer Engineering & Science, 2023, 45(9): 1648-1660(in Chinese). doi: 10.3969/j.issn.1007-130X.2023.09.014
[14]	LI C Y, LI J, CHEN H L, et al. Enhanced Harris hawks optimization with multi-strategy for global optimization tasks[J]. Expert Systems with Applications, 2021, 185: 115499. doi: 10.1016/j.eswa.2021.115499
[15]	李岩, 钱谦. 基于多种群与协同量子化的哈里斯鹰优化算法[J]. 控制与决策, 2024, 39(7): 2169-2176. LI Y, QIAN Q. Harris hawks optimization algorithm based on multigroup and collaborative quantization[J]. Control and Decision, 2024, 39(7): 2169-2176(in Chinese).
[16]	柴岩, 任生. 双向经验引导与极端个体调控的HHO算法[J]. 计算机科学与探索, 2023, 17(9): 2118-2136. doi: 10.3778/j.issn.1673-9418.2203134 CHAI Y, REN S. HHO algorithm based on bidirectional experience guidance and extreme individual regulation[J]. Journal of Frontiers of Computer Science and Technology, 2023, 17(9): 2118-2136(in Chinese). doi: 10.3778/j.issn.1673-9418.2203134
[17]	刘小龙, 梁彤缨. 基于方形邻域和随机数组的哈里斯鹰优化算法[J]. 控制与决策, 2022, 37(10): 2467-2476. LIU X L, LIANG T Y. Harris hawk optimization algorithm based on square neighborhood and random array[J]. Control and Decision, 2022, 37(10): 2467-2476(in Chinese).
[18]	展广涵, 王雨虹, 刘昊. 混合策略改进的哈里斯鹰优化算法及其应用[J]. 传感技术学报, 2022, 35(10): 1394-1403. ZHAN G H, WANG Y H, LIU H. Improved Harris hawks optimization algorithm with hybrid strategy and its application[J]. Chinese Journal of Sensors and Actuators, 2022, 35(10): 1394-1403(in Chinese).
[19]	赵峰, 徐丹华. 基于混沌扰动与柯西变异的HHO算法[J]. 安徽大学学报(自然科学版), 2023, 47(4): 25-34. ZHAO F, XU D H. HHO algorithm based on chaotic perturbation and Cauchy mutation[J]. Journal of Anhui University (Natural Science Edition), 2023, 47(4): 25-34(in Chinese).
[20]	贾鹤鸣, 刘庆鑫, 刘宇翔, 等. 融合动态反向学习的阿奎拉鹰与哈里斯鹰混合优化算法[J]. 智能系统学报, 2023, 18(1): 104-116. doi: 10.11992/tis.202108031 JIA H M, LIU Q X, LIU Y X, et al. Hybrid Aquila and Harris hawks optimization algorithm with dynamic opposition-based learning[J]. CAAI Transactions on Intelligent Systems, 2023, 18(1): 104-116(in Chinese). doi: 10.11992/tis.202108031
[21]	YU J H, YANG J H. Adaptive multi-strategy learning particle swarm optimization with evolutionary state estimation[M]//Bio-Inspired Computing: theories and Applications. Berlin: Springer, 2022: 174-186.
[22]	WEINBERGER K Q, SAUL L K. Distance metric learning for large margin nearest neighbor classification[J]. Journal of Machine Learning Research, 2009, 10: 207-244.
[23]	YUAN T T, DENG W H, TANG J, et al. Signal-to-noise ratio: a robust distance metric for deep metric learning[C]//Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition. Piscataway: IEEE Press, 2019: 4810-4819.
[24]	YANG J H, YU J H, HUANG C. Adaptive multistrategy ensemble particle swarm optimization with signal-to-noise ratio distance metric[J]. Information Sciences, 2022, 612: 1066-1094. doi: 10.1016/j.ins.2022.07.165
[25]	高建瓴, 喻明毫. 混合差分进化与二次插值改进哈里斯鹰算法[J]. 小型微型计算机系统, 2023, 44(7): 1352-1359. GAO J L, YU M H. Hybrid differential evolution and quadratic interpolation improved Harris hawks optimization algorithm[J]. Journal of Chinese Computer Systems, 2023, 44(7): 1352-1359(in Chinese).
[26]	DEVAN P A M, HUSSIN F A, IBRAHIM R B, et al. An arithmetic-trigonometric optimization algorithm with application for control of real-time pressure process plant[J]. Sensors, 2022, 22(2): 617. doi: 10.3390/s22020617
[27]	KHODADADI N, SNASEL V, MIRJALILI S. Dynamic arithmetic optimization algorithm for truss optimization under natural frequency constraints[J]. IEEE Access, 2022, 10: 16188-16208. doi: 10.1109/ACCESS.2022.3146374
[28]	ZHANG Y Y, CHI A N, MIRJALILI S. Enhanced Jaya algorithm: a simple but efficient optimization method for constrained engineering design problems[J]. Knowledge-Based Systems, 2021, 233: 107555. doi: 10.1016/j.knosys.2021.107555
[29]	NADIMI-SHAHRAKI M H, TAGHIAN S, MIRJALILI S. An improved grey wolf optimizer for solving engineering problems[J]. Expert Systems with Applications, 2021, 166: 113917. doi: 10.1016/j.eswa.2020.113917
[30]	NABIL E. A modified flower pollination algorithm for global optimization[J]. Expert Systems with Applications, 2016, 57: 192-203. doi: 10.1016/j.eswa.2016.03.047
[31]	MIRJALILI S, HASHIM S Z M. A new hybrid PSOGSA algorithm for function optimization[C]//Proceedings of the International Conference on Computer and Information Application. Piscataway: IEEE Press, 2010: 374-377.
[32]	TANG Z Y, ZHANG D X. A modified particle swarm optimization with an adaptive acceleration coefficients[C]//Proceedings of the Asia-Pacific Conference on Information Processing. Piscataway: IEEE Press, 2009: 330-332.
[33]	DEHKORDI A A, SADIQ A S, MIRJALILI S, et al. Nonlinear-based chaotic Harris hawks optimizer: algorithm and Internet of vehicles application[J]. Applied Soft Computing, 2021, 109: 107574. doi: 10.1016/j.asoc.2021.107574
[34]	HUSSAIN K, ZHU W, MOHD SALLEH M N. Long-term memory Harris’ hawk optimization for high dimensional and optimal power flow problems[J]. IEEE Access, 2019, 7: 147596-147616. doi: 10.1109/ACCESS.2019.2946664
[35]	NAIK M K, PANDA R, WUNNAVA A, et al. A leader Harris hawks optimization for 2-D Masi entropy-based multilevel image thresholding[J]. Multimedia Tools and Applications, 2021, 80(28): 35543-35583.
[36]	ARINI F Y, CHIEWCHANWATTANA S, SOOMLEK C, et al. Joint opposite selection (JOS): a premiere joint of selective leading opposition and dynamic opposite enhanced Harris’ hawks optimization for solving single-objective problems[J]. Expert Systems with Applications, 2022, 188: 116001. doi: 10.1016/j.eswa.2021.116001
[37]	DEMSAR J. Statistical comparisons of classifiers over multiple data sets[J]. Journal of Machine Learning Research, 2006, 7: 1-30.
[38]	POLÁKOVÁ R, TVRDÍK J, BUJOK P. Differential evolution with adaptive mechanism of population size according to current population diversity[J]. Swarm and Evolutionary Computation, 2019, 50: 100519. doi: 10.1016/j.swevo.2019.03.014
[39]	张吉祥, 张孟健, 王德光. 增强型白骨顶鸡优化算法及其应用[J]. 小型微型计算机系统, 2024, 45(10): 2401-2410. ZHANG J X, ZHANG M J, WANG D G. Enhanced coot optimization algorithm and its application[J]. Journal of Chinese Computer Systems, 2024, 45(10): 2401-2410.
