线束拓扑图纸快速签收方法

雷璐; 吴明宇; 郭智博; 乔晓利

doi:10.13700/j.bh.1001-5965.2023.0427

线束拓扑图纸快速签收方法

doi: 10.13700/j.bh.1001-5965.2023.0427

雷璐¹,
吴明宇¹,
郭智博¹,
乔晓利^{1, 2, ,}

1.
长春理工大学机电工程学院，长春 130022
2.
长春理工大学重庆研究院，重庆 401135

基金项目:

吉林省科技发展计划(20200401128GX)；重庆英才计划包干制项目(cstc2022ycjh-bgzxm0187)

详细信息

通讯作者:
E-mail：qiaoxiaoli@cust.edu.cn

中图分类号: TP391.7
计量
- 文章访问数: 133
- HTML全文浏览量: 45
- PDF下载量: 3
- 被引次数: 0
出版历程
- 收稿日期: 2023-06-29
- 录用日期: 2023-11-10
- 网络出版日期: 2023-12-09
- 整期出版日期: 2025-09-30

Fast sign-off method for wiring harness topology drawings

LEI Lu¹,
WU Mingyu¹,
GUO Zhibo¹,
QIAO Xiaoli^{1, 2
, ,}

1.
School of Mechanical and Electrical Engineering，Changchun University of Science and Technology，Changchun 130022，China
2.
Chongqing Research Institute of Changchun University of Science and Technology，Chongqing 401135，China

Funds:

Science and Technology Development Plan of Jilin Province (20200401128GX); Chongqing Talent Plan Contract System Project (cstc2022ycjh-bgzxm0187)

More Information

Corresponding author: E-mail：qiaoxiaoli@cust.edu.cn

摘要

摘要:
针对人工校验签收线束拓扑图纸效率低、失误率高且不能适应智能化生产的问题，提出了基于图文法和谓词逻辑的线束拓扑图纸快速签收方法。该方法主要由图重构和图解析组成。图重构过程中，为使图结构能更好反映图纸数据，引入谓词逻辑对图资源进行提取，将拓扑图重构为标准图。图解析包含图语法分析器和图语义分析器。图语法分析器使用图文法归约算法对图结构进行识别解析，判断设计过程中是否出现图纸结构性错误，实现制图逻辑检查；图语义分析器应用归约判断重构后的图信息描述是否正确，并参照信息唯一性准则，将路径信息解析后与电线表比对，完成轨迹信息匹配性检测。在此基础上开展了12组实物实验，结果表明：所提方法可以将线束拓扑图纸签收耗时从3 h降低为9 s，且在此过程中未出现漏识别现象。
- 线束拓扑图纸 /
- 签收 /
- 图文法 /
- 谓词逻辑 /
- 归约
Abstract:
To address the low efficiency, the high error rate, and inability to adapt to intelligent production when wiring harness drawings are manually verified and signed off, this paper proposed a fast sign-off method for wiring harness topology drawings based on graph grammar and predicate logic. The method mainly consisted of two parts: graph reconstruction and graph parsing. In the process of graph reconstruction, to make the graph structure better reflect drawing data, predicate logic was introduced to extract graph resources, and the topology drawing was reconstructed into a standard graph. Graph parsing involved a graph grammar analyzer and a graph semantic analyzer. In the graph grammar analyzer, a graph grammar reduction algorithm was used to identify and analyze the graph structure, so as to judge whether there were structural errors in the drawing during the design process and to realize the logic check of the drawing. The graph semantic analyzer applied the reduction judgment to reconstructed graph information description and refers to the information uniqueness criterion for comparing the path information with the wire table after parsing to complete the matching detection of the trajectory information. On this basis, 12 groups of physical experiments were carried out. The experimental results show that this method can reduce the time required for signing off the wiring harness drawings from 3 hours to 9 seconds, and there is no missing recognition phenomenon in the process.
- wiring harness topology drawings /
- sign-off /
- graph grammar /
- predicate logic /
- reduction

HTML全文

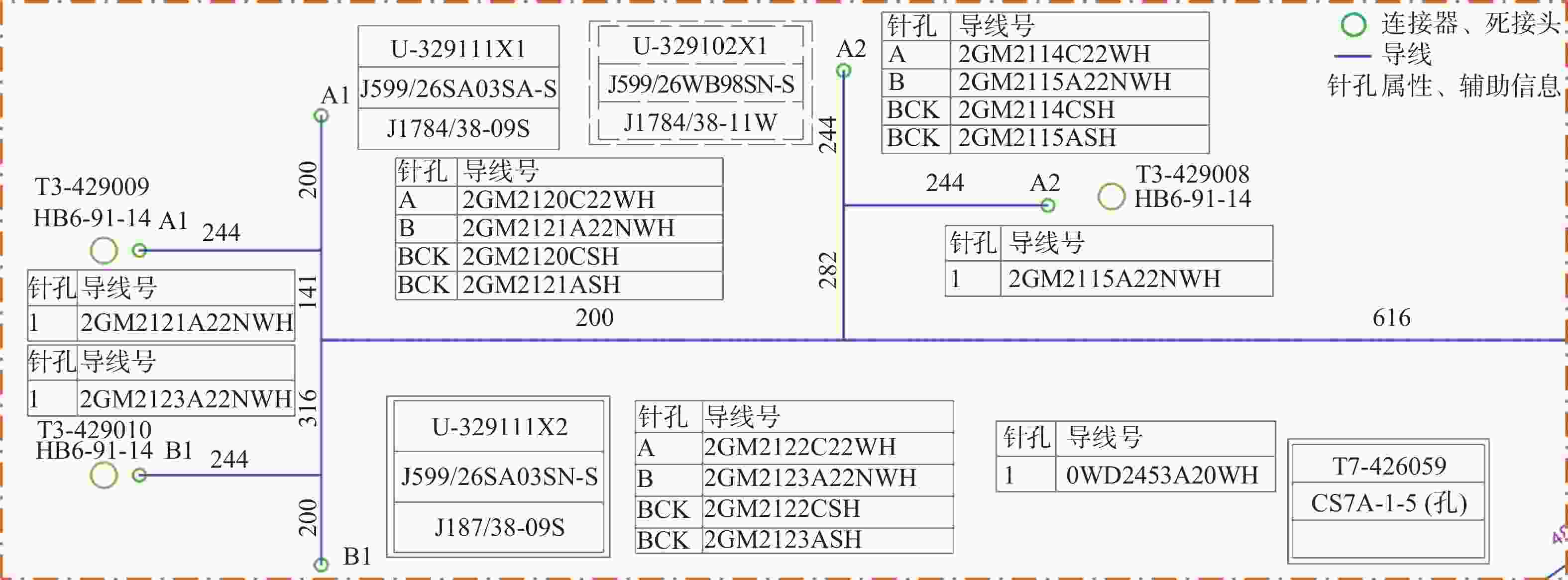

图 1 航空线束拓扑示意图

Figure 1. Aviation wiring harness topology

下载: 全尺寸图片幻灯片

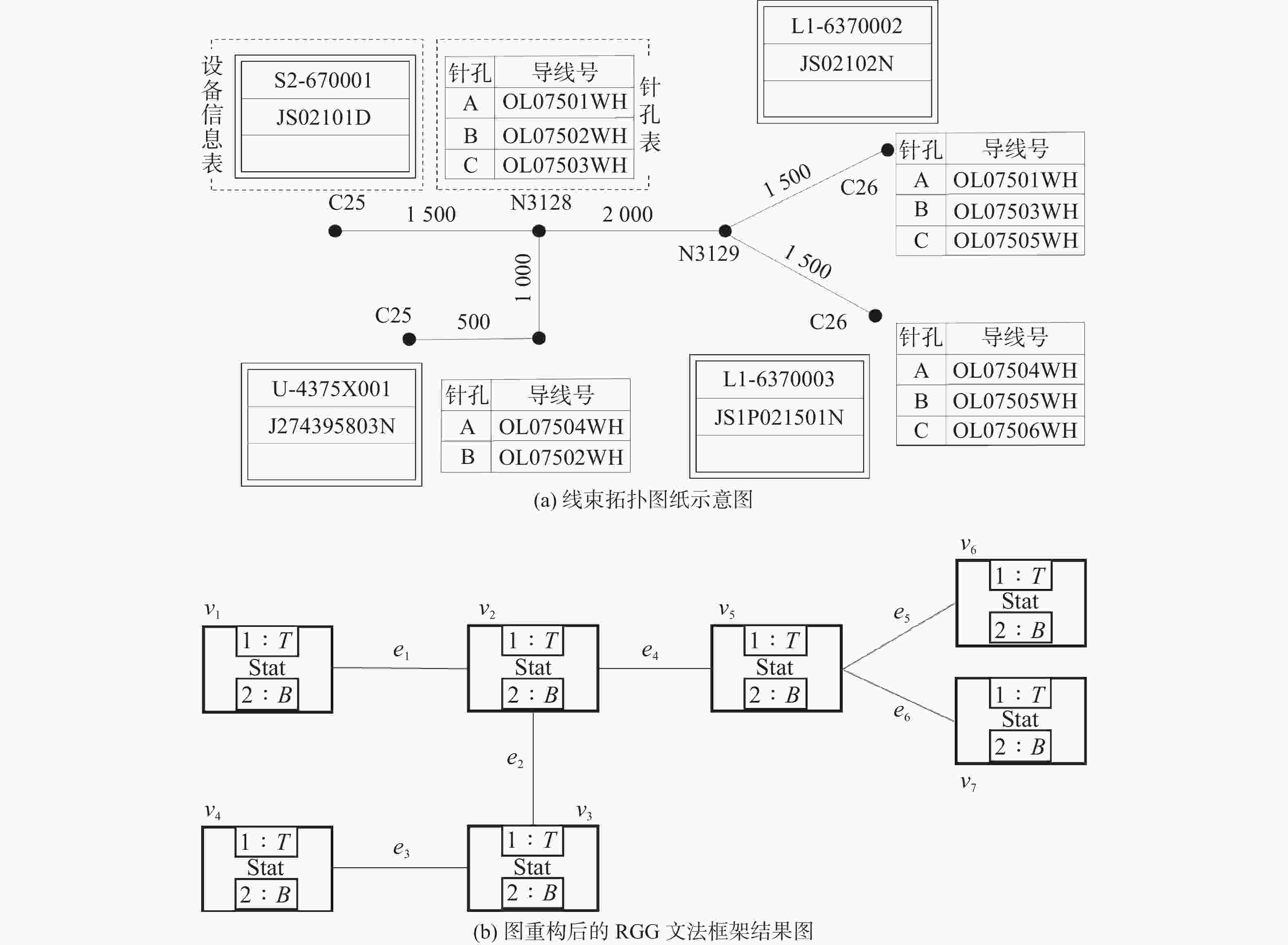

图 2 线束拓扑图纸图重构起始图-结果图

Figure 2. Start diagram-result diagram of graph reconstruction of wiring harness topology drawing

下载: 全尺寸图片幻灯片

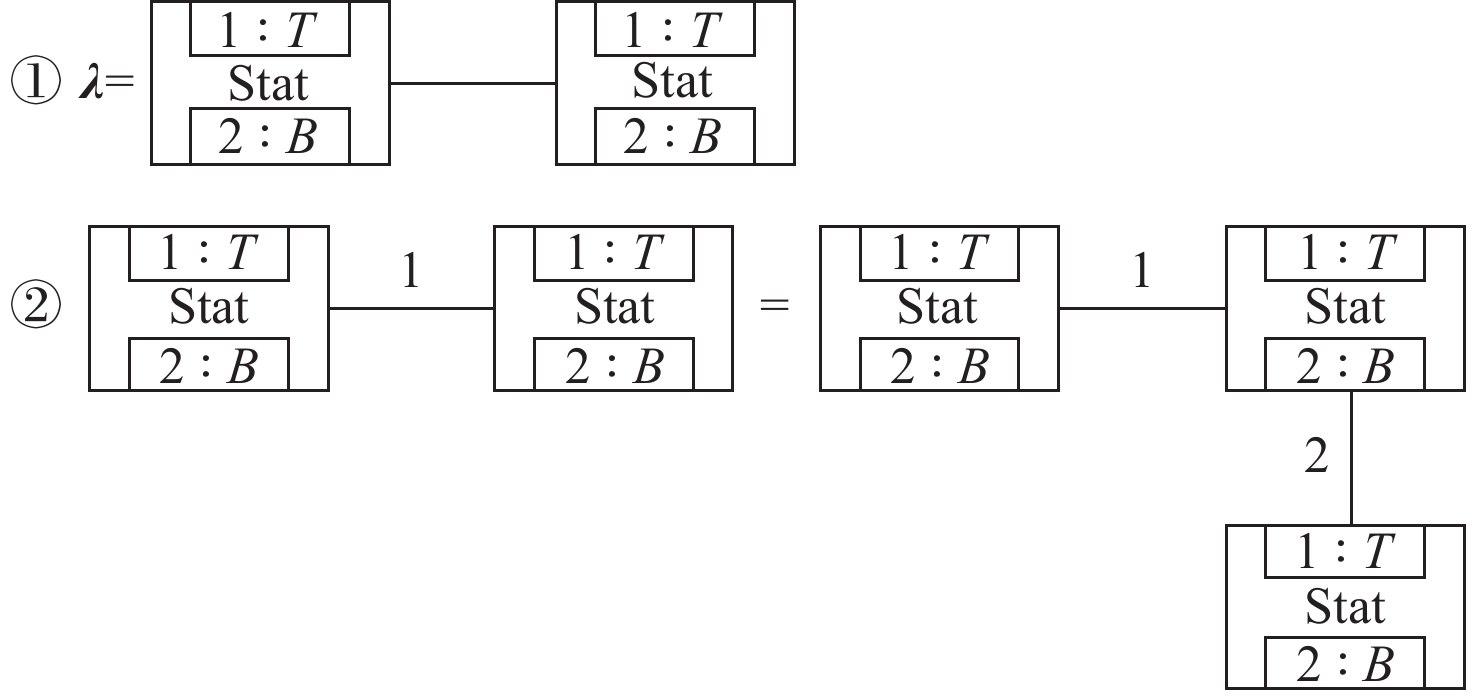

图 3 图文法RGG产生式集合

Figure 3. Graph grammar RGG production set

下载: 全尺寸图片幻灯片

图 4 图归约过程

Figure 4. Graph reduction process

下载: 全尺寸图片幻灯片

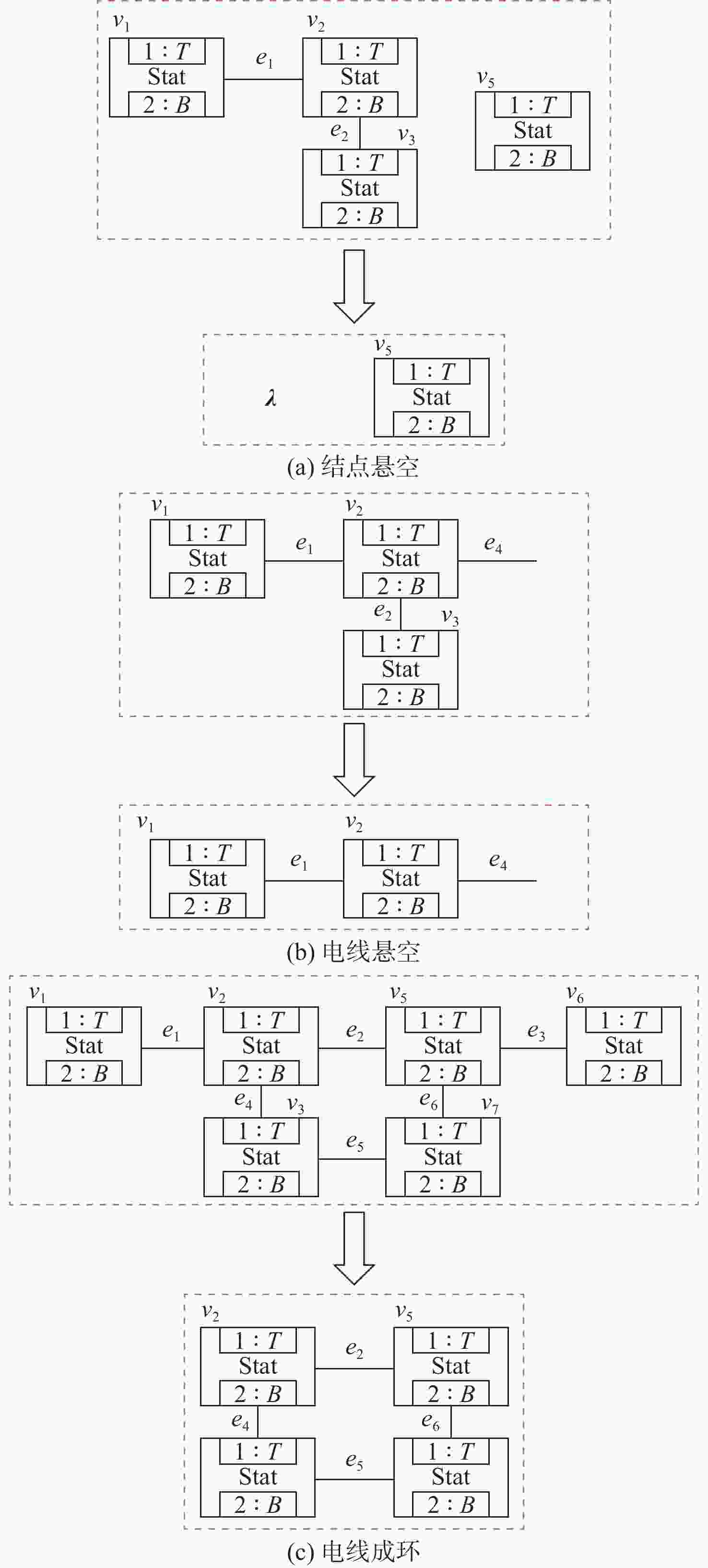

图 5 归约完成的3种错误情况

Figure 5. Three error situations for completion of reduction

下载: 全尺寸图片幻灯片

图 6 线束路径解析

Figure 6. Wiring harness path analysis

下载: 全尺寸图片幻灯片

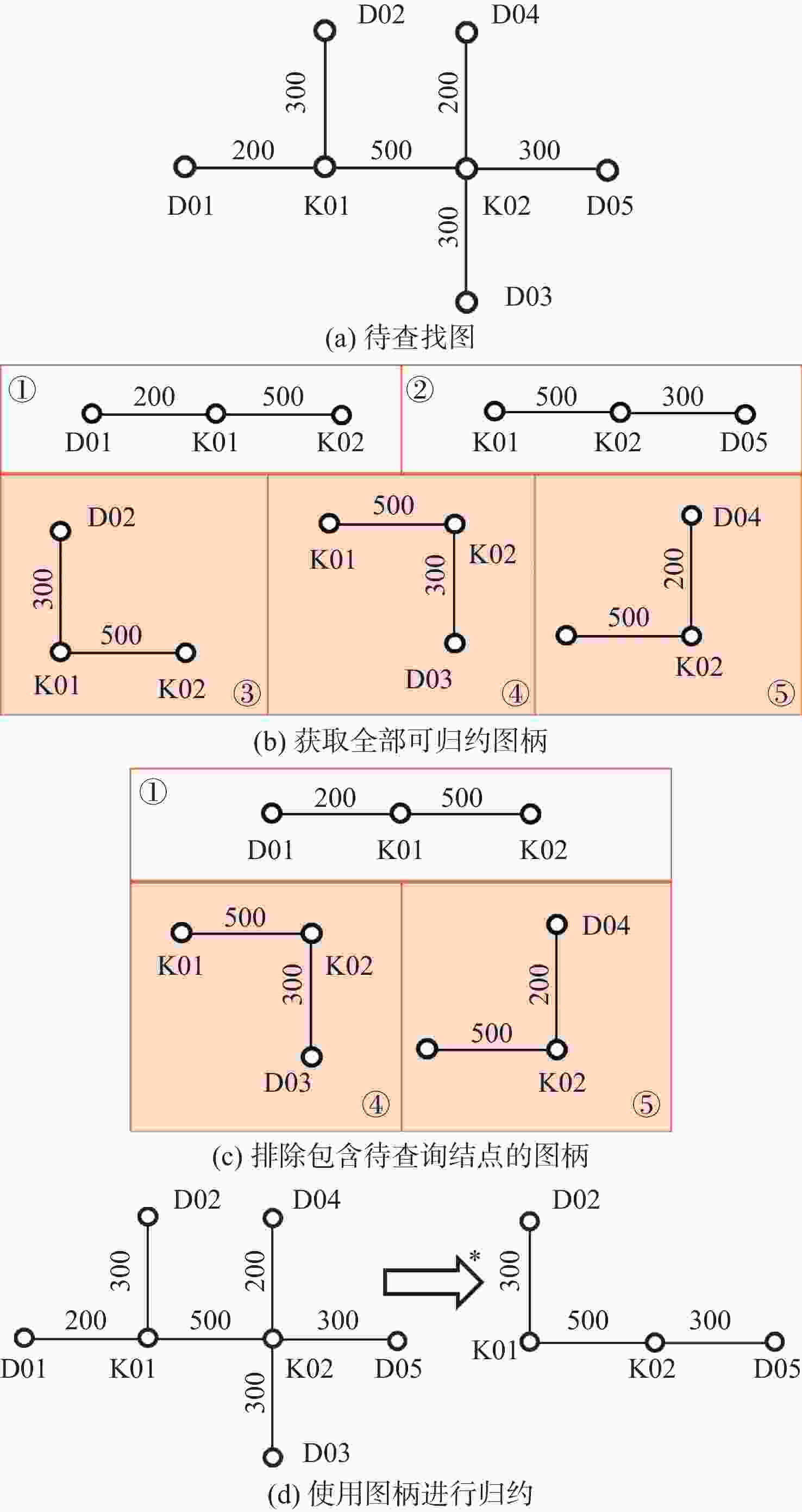

图 7 路径查找过程

Figure 7. Path lookup process

下载: 全尺寸图片幻灯片

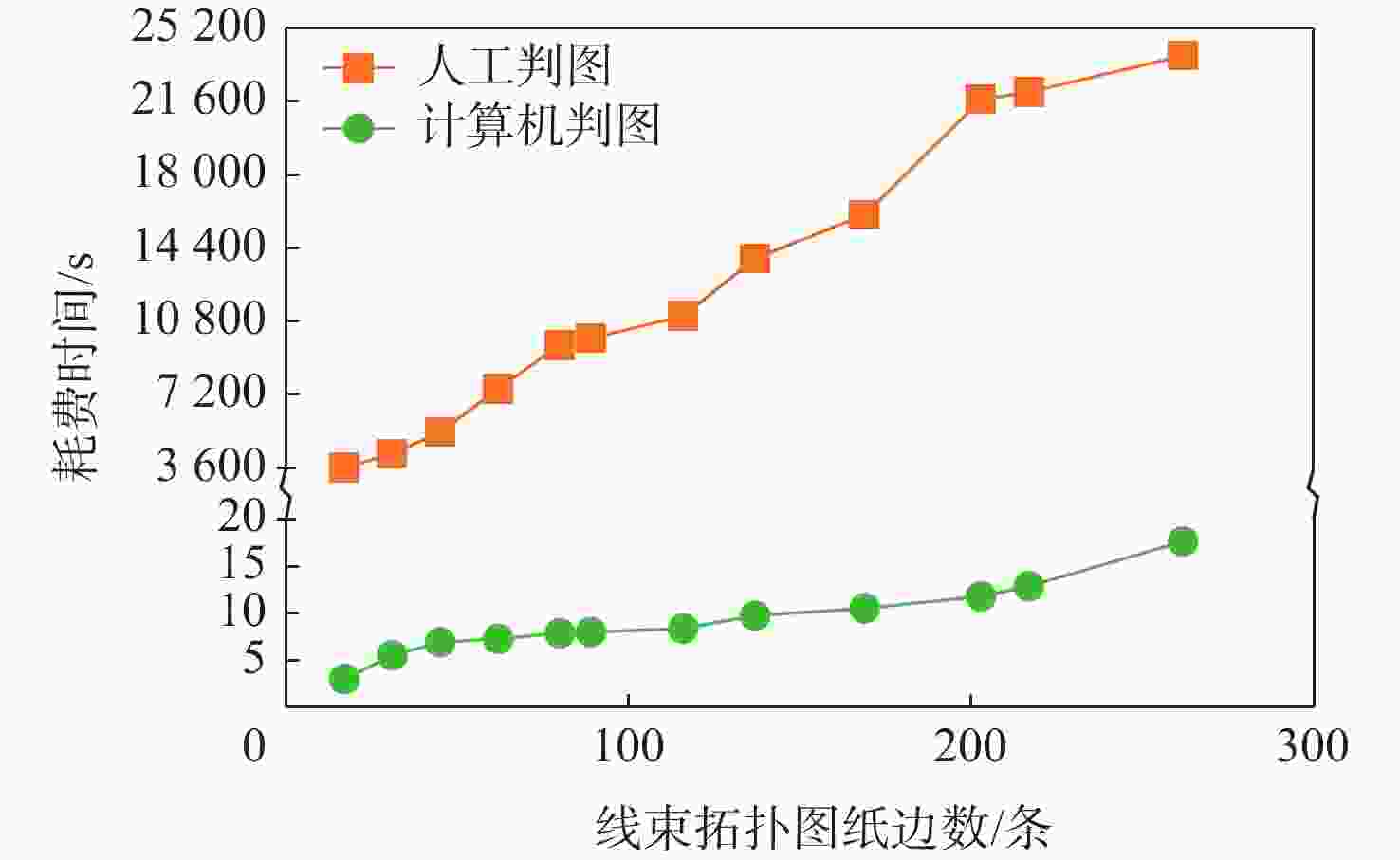

图 8 签收效率对比

Figure 8. Comparison of sign-off efficiency

下载: 全尺寸图片幻灯片

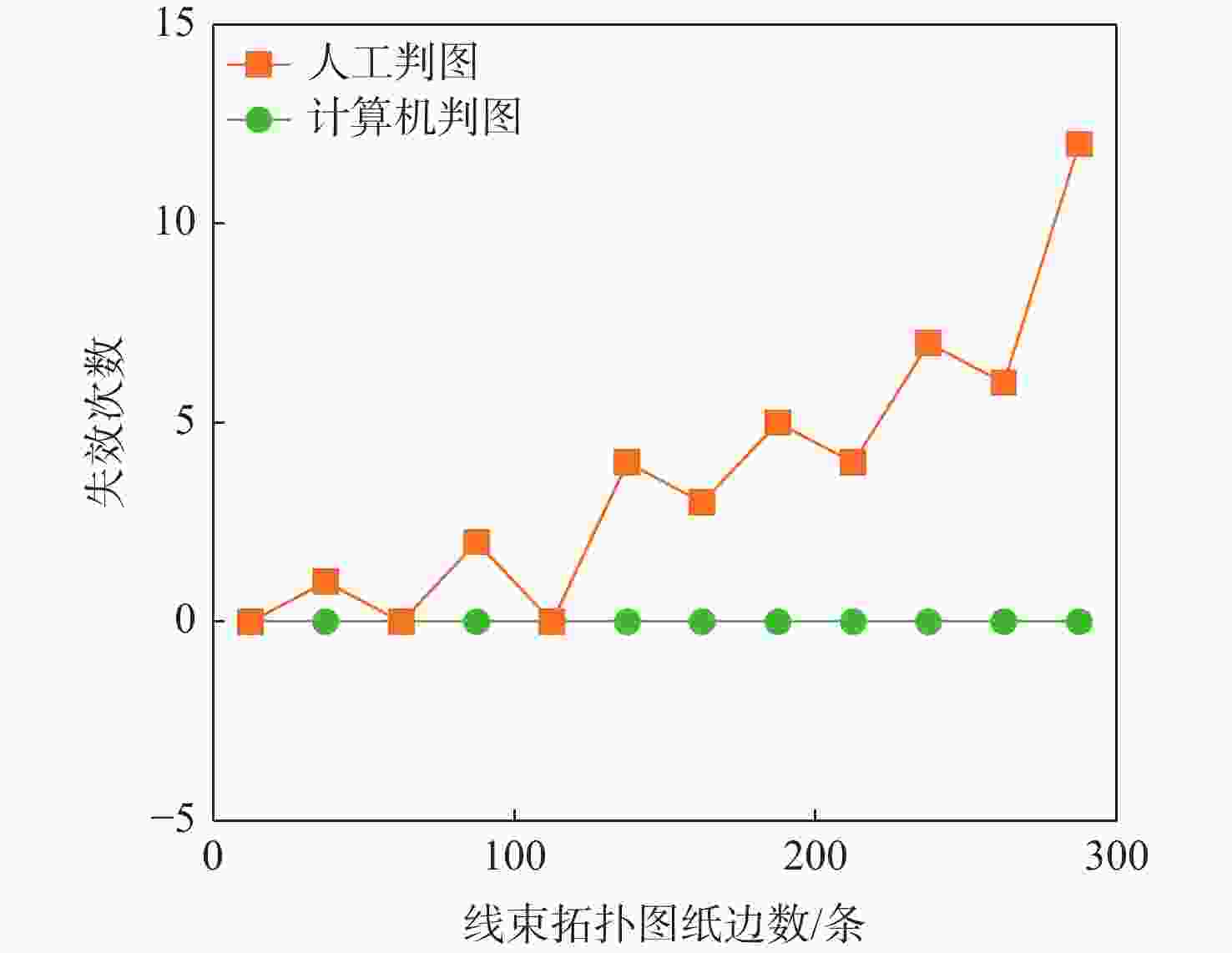

图 9 签收准确性对比

Figure 9. Comparison of sign-off accuracy

下载: 全尺寸图片幻灯片

表 1 谓词逻辑设计

Table 1. Predicate logic design

函数	参数	释义
Circle(V_i)	V_i为点对象	V_i为圆
Radius(V_i, R₀)	V_i为点对象， R₀为固定半径	V_i半径为R₀
Node(V_i)	V_i为点对象	V_i为结点
Line(E_i)	E_i为边对象	边为直线
SamePoint($O_{V_i} $, $O_{V_j} $)	V_i、V_j为点对象	两点重合
Outer(V_i)	V_i为点对象	V_i为外结点
Knee(V_i)	V_i为点对象	V_i为拐点
EquipInfoTable(g)	g为图元	元素为设备信息表成员
PinHoleTable(g)	g为图元	元素为针孔表成员
Text(g)	g为图元	元素为文本
Table(g)	g为图元	元素为表格
GreatThanNumber(m, N₀)	m为数值，N₀为常数	m大于N₀
EqualsNumber(m, N₀)	m为数值，N₀为常数	m等于N₀
NaturalNumber(t)	t为文本对象	文本为自然数
SameChar(C₀, C₁)	C₀、C₁为字符	两字符相同
Unique(t)	t为文本对象	文本内容唯一存在

下载: 导出CSV

表 2 过程函数设计

Table 2. Process function design

函数	参数	释义
ConnectedCount(V_i)	V_i为点对象	获取点V_i相连边的数量
Dis(V_j, V_i)	V_j、V_i为点对象	获取两者距离
Sub(g, 0, 1)	g为图元	获取首字母
Length(g)	g为图元	获取元素长度
Min(d)	d为两者距离	匹配距离最短元素
Identifier(g)	g为图元	获取对应元素唯一标识码

下载: 导出CSV

表 3 图重构过程耗时

Table 3. Time consumption of graph reconstruction process

实验编号	线束拓扑图纸边数/条	图重构时间/s
1	17	1.97
2	31	2.23
3	45	2.87
4	62	2.95
5	80	3.18
6	89	3.20
7	116	3.28
8	137	3.82
9	169	4.03
10	203	4.29
11	217	4.59
12	262	6.77

下载: 导出CSV

表 4 图语法分析结果

Table 4. Graph grammar analysis results

实验编号	线束拓扑图纸边数/条	制图逻辑检查时间/s
1	17	0.85
2	31	1.09
3	45	1.32
4	62	1.39
5	80	1.53
6	89	1.54
7	116	1.76
8	137	2.17
9	169	2.61
10	203	3.25
11	217	3.37
12	262	4.28

下载: 导出CSV

表 5 图语义分析结果

Table 5. Graph semantic analysis results

实验编号	线束拓扑图纸边数/条	轨迹信息匹配性检查时间/s
1	17	0.19
2	31	2.21
3	45	2.76
4	62	2.94
5	80	3.17
6	89	3.26
7	116	3.34
8	137	3.76
9	169	3.89
10	203	4.28
11	217	4.91
12	262	6.55

下载: 导出CSV

表 6 签收效率

Table 6. Sign-off efficiency

实验编号	线束拓扑图纸边数/条	计算机判图总时长/s	人工判图总时长/h
1	17	3.01	1
2	31	5.53	1.2
3	45	6.95	1.5
4	62	7.28	2.1
5	80	7.88	2.7
6	89	8.00	2.8
7	116	8.38	3.1
8	137	9.75	3.9
9	169	10.53	4.5
10	203	11.82	6.1
11	217	12.87	6.2
12	262	17.60	6.7

下载: 导出CSV

表 7 签收准确性

Table 7. Sign-off accuracy

实验编号	线束拓扑图纸边数/条	人工判图失效次数	计算机判图失效次数
1	17	0	0
2	31	1	0
3	45	0	0
4	62	2	0
5	80	0	0
6	89	4	0
7	116	3	0
8	137	5	0
9	169	4	0
10	203	7	0
11	217	6	0
12	262	12	0

下载: 导出CSV
