ICPS multi-modal integrated security control based on data-model linkage under dual-end asynchronous DoS attacks
-
摘要:
针对一类双端异步拒绝服务(DoS)攻击与执行器故障共存的工业信息物理系统(ICPS)，通过将数据驱动技术与模型机理解析方法相融合，对多模态综合安全控制与通讯间的协同设计问题进行研究。设计一种触发阈值可随系统行为动态变化的自适应离散事件触发通讯机制(ADETCS)，并构建可同时抵御双端异步DoS攻击与执行器故障的ICPS多模态综合安全控制架构；针对不同能量等级的DoS攻击，采用“分而治之”的思想，借助长短期记忆(LSTM)网络与弹性控制方法，提出基于数模联动的主-被动协同混合容侵策略。基于Lyapunov稳定性理论进行观测器与控制器的推证，进而采用K-Means++聚类算法及模糊融合方法，在线对不同模态下的控制器进行加权融合，实现不同控制模态间的软切换；通过四容水箱实例，验证了双端异步DoS攻击下基于数模联动的多模态综合安全控制方法的正确性。实验结果表明：数模联动的方法增强了ICPS抵御双端异步DoS攻击的能力，多模态综合安全控制器的设计实现了控制模态与ADETCS间的双向自适应协同控制。
-
关键词:
- 工业信息物理系统 /
- 双端异步DoS攻击 /
- 数模联动 /
- 自适应离散事件触发通讯机制 /
- 多模态综合安全控制
Abstract:Data-driven technology and model mechanism analysis techniques are combined to study the problem of multi-modal integrated safety control and communication collaborative design, with an eye toward a type of industrial cyber-physical system (ICPS) that is susceptible to dual-end asynchronous denial of service (DoS) attacks and actuator failures. Firstly, an adaptive discrete event triggered communication scheme (ADETCS) with a trigger threshold that can dynamically change with the system behavior is designed, and an ICPS multi-modal integrated safety control architecture that can simultaneously resist asynchronous dual-end DoS attacks and actuator failures is constructed. Secondly, an active-passive collaborative hybrid intrusion tolerance strategy based on data-model linkage is proposed. Then, combined with the idea of “divide and conquer”, a tolerance method for dual-end asynchronous DoS attacks is proposed with the help of a long short-term memory (LSTM) networks and elastic control. Thirdly, the observer and controller are deduced based on Lyapunov stability theory, and then the K-Means++ clustering algorithm and fuzzy fusion method are used to perform weighted fusion of controllers under different modes online, thus realizing soft switching between different control modes. Finally, the effectiveness of the proposed method is verified through a four-tank example. According to the experimental results, the data-model linkage method improves ICPS's resistance to dual-end asynchronous DoS attacks, and the multi-modal integrated safety controller's design enables two-way adaptive cooperative control between the ADETCS and control mode.
-

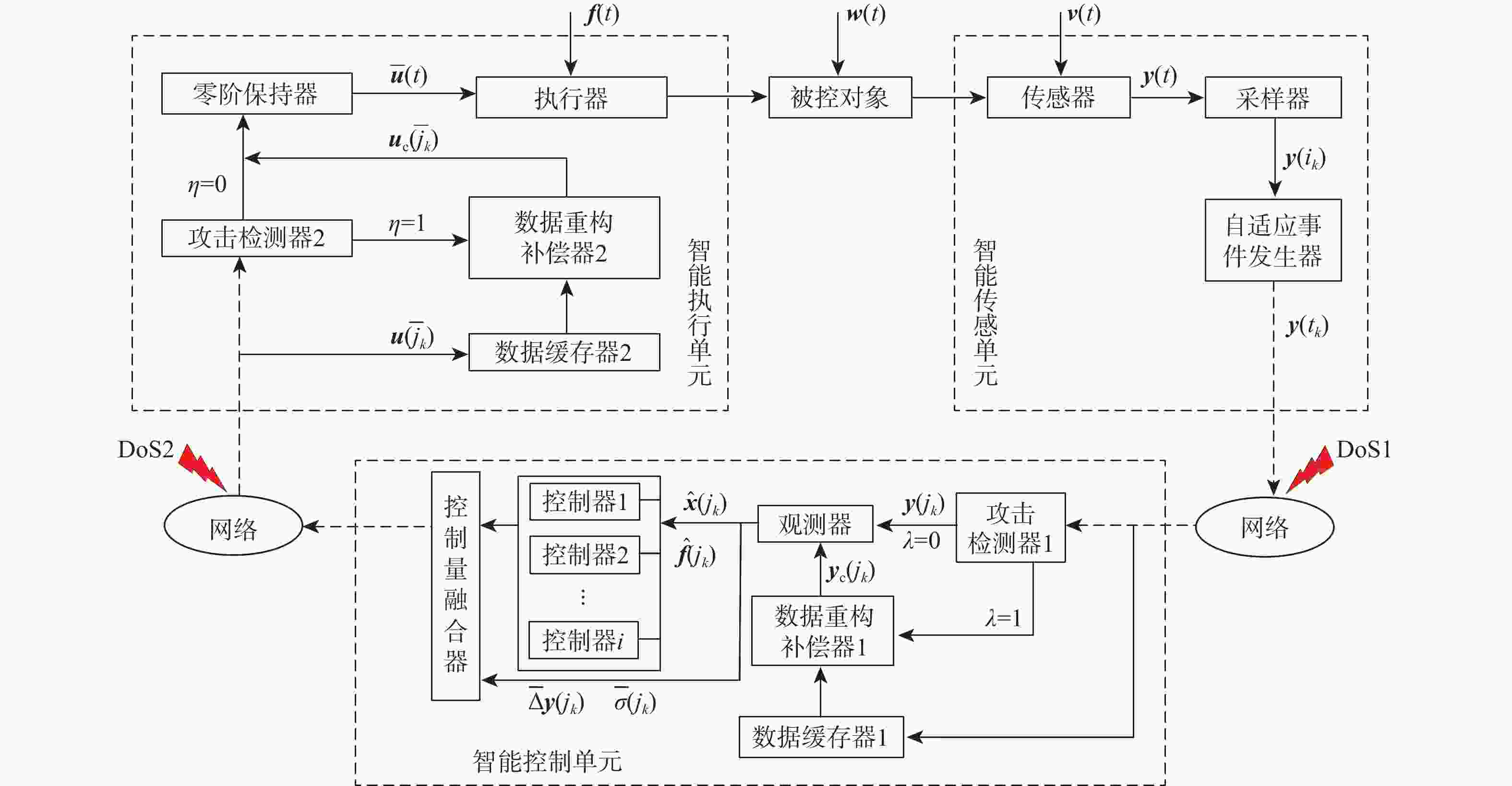

图 1 基于ADETCS的双端异步DoS攻击下ICPS多模态综合安全控制架构
Figure 1. ICPS multi-modal integrated security control architecture under double-ended asynchronous DoS attacks based on ADETCS

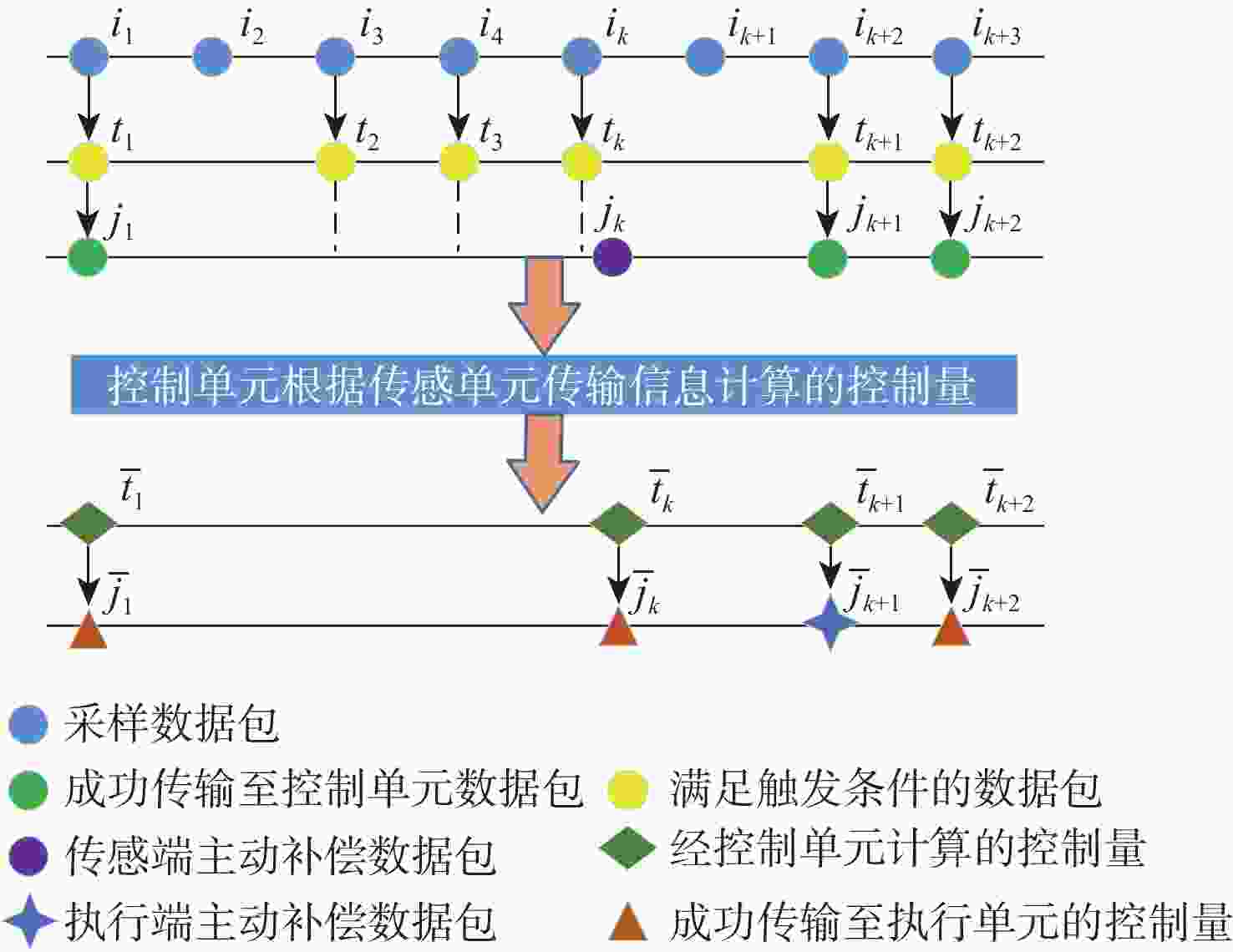

图 2 双端异步DoS攻击下数据传输时序图
Figure 2. Timing diagram of data transmission under double-ended asynchronous DoS attack

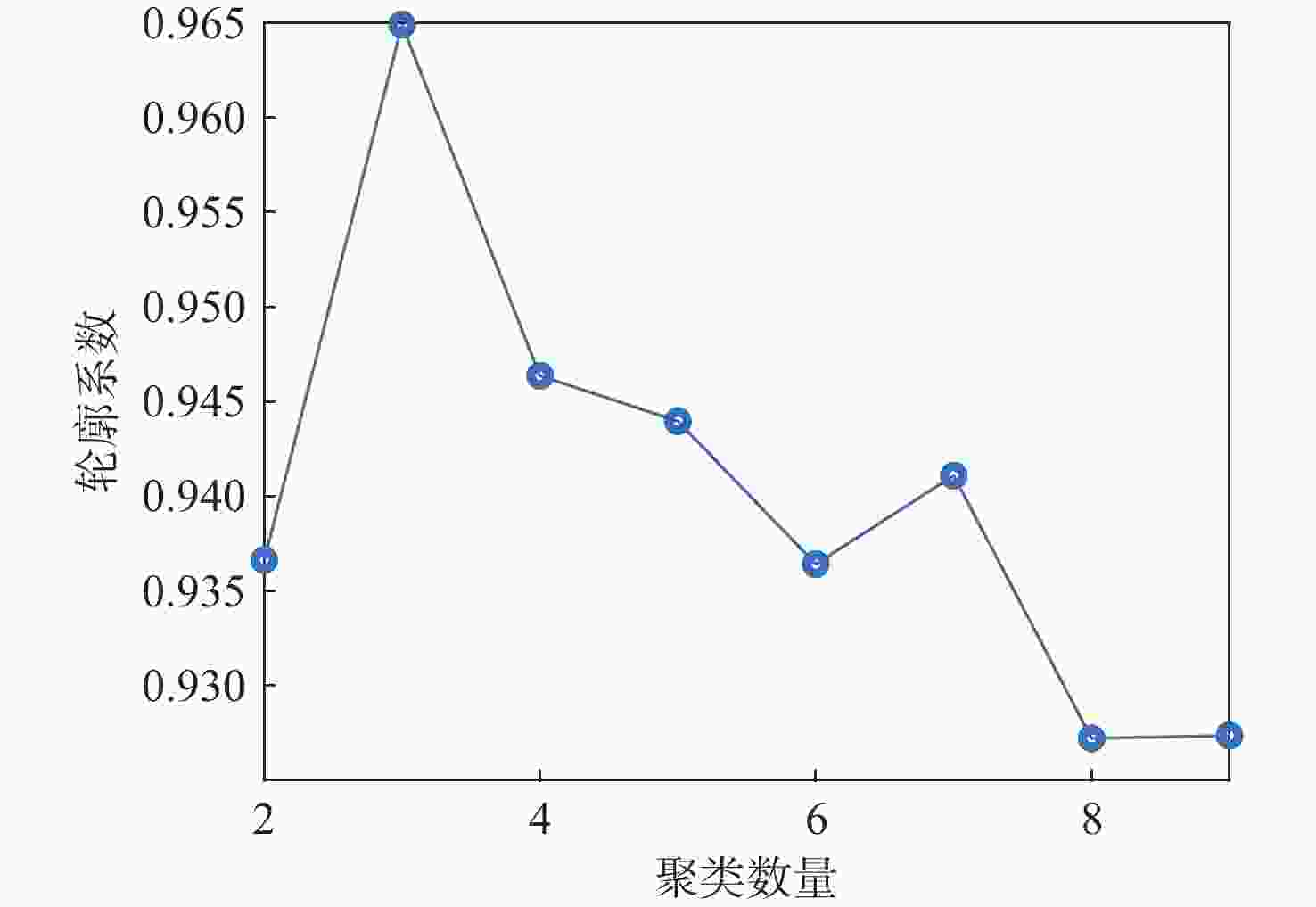

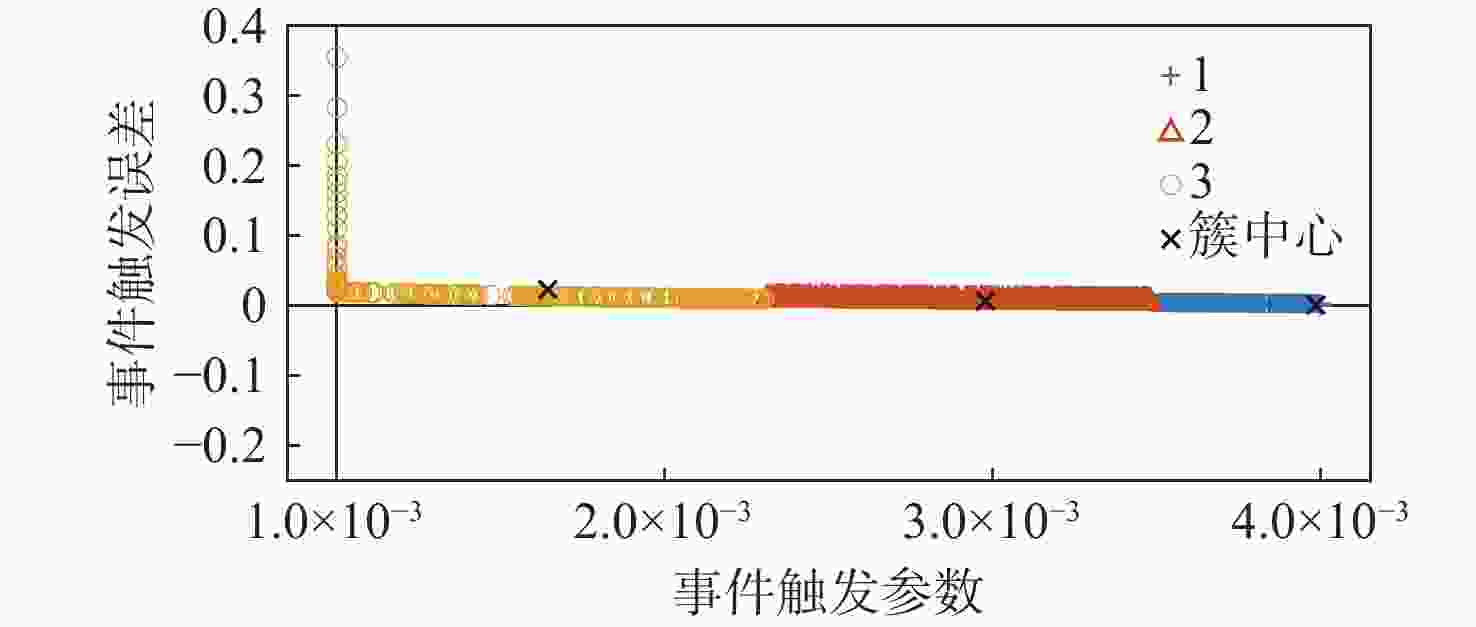

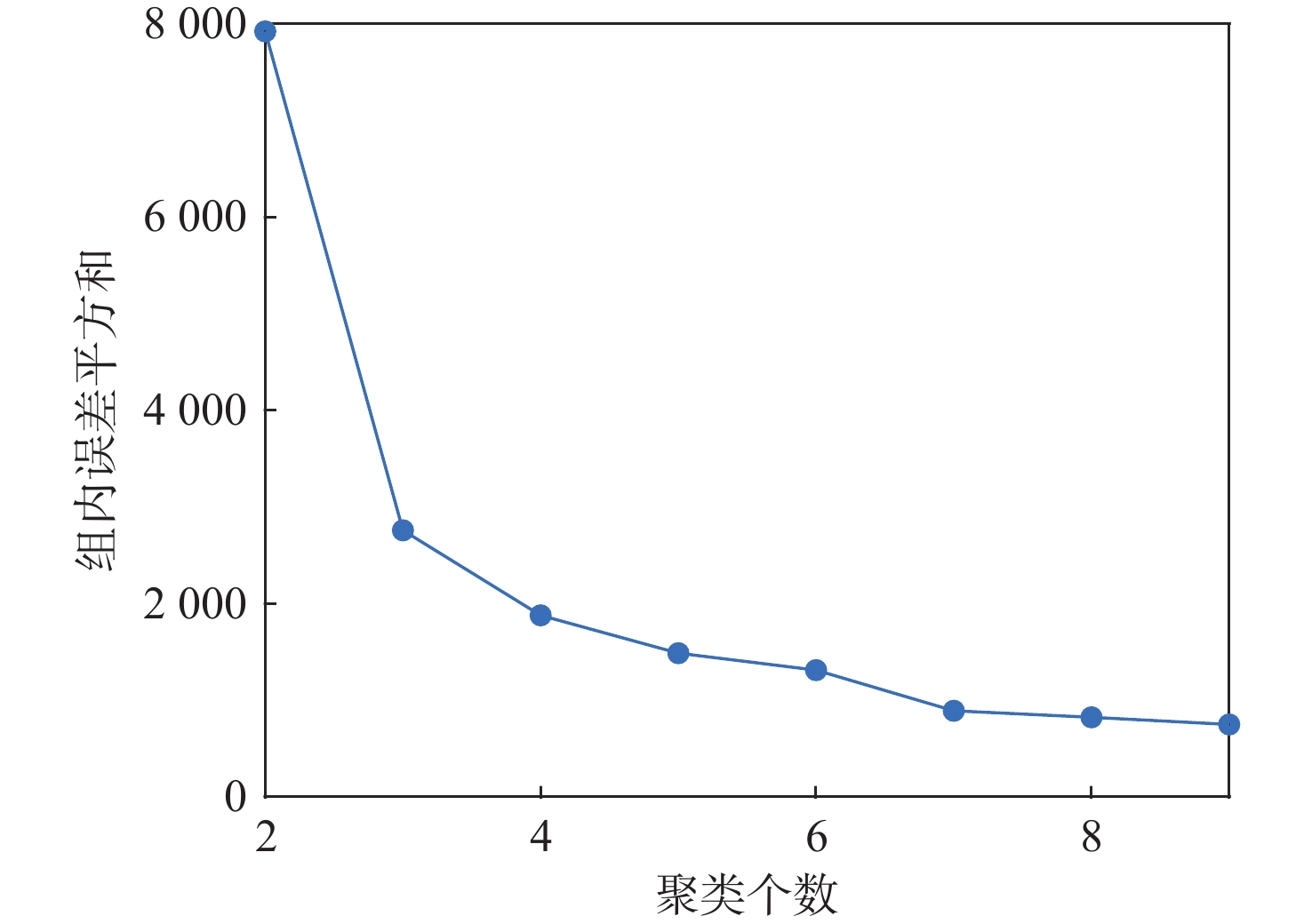

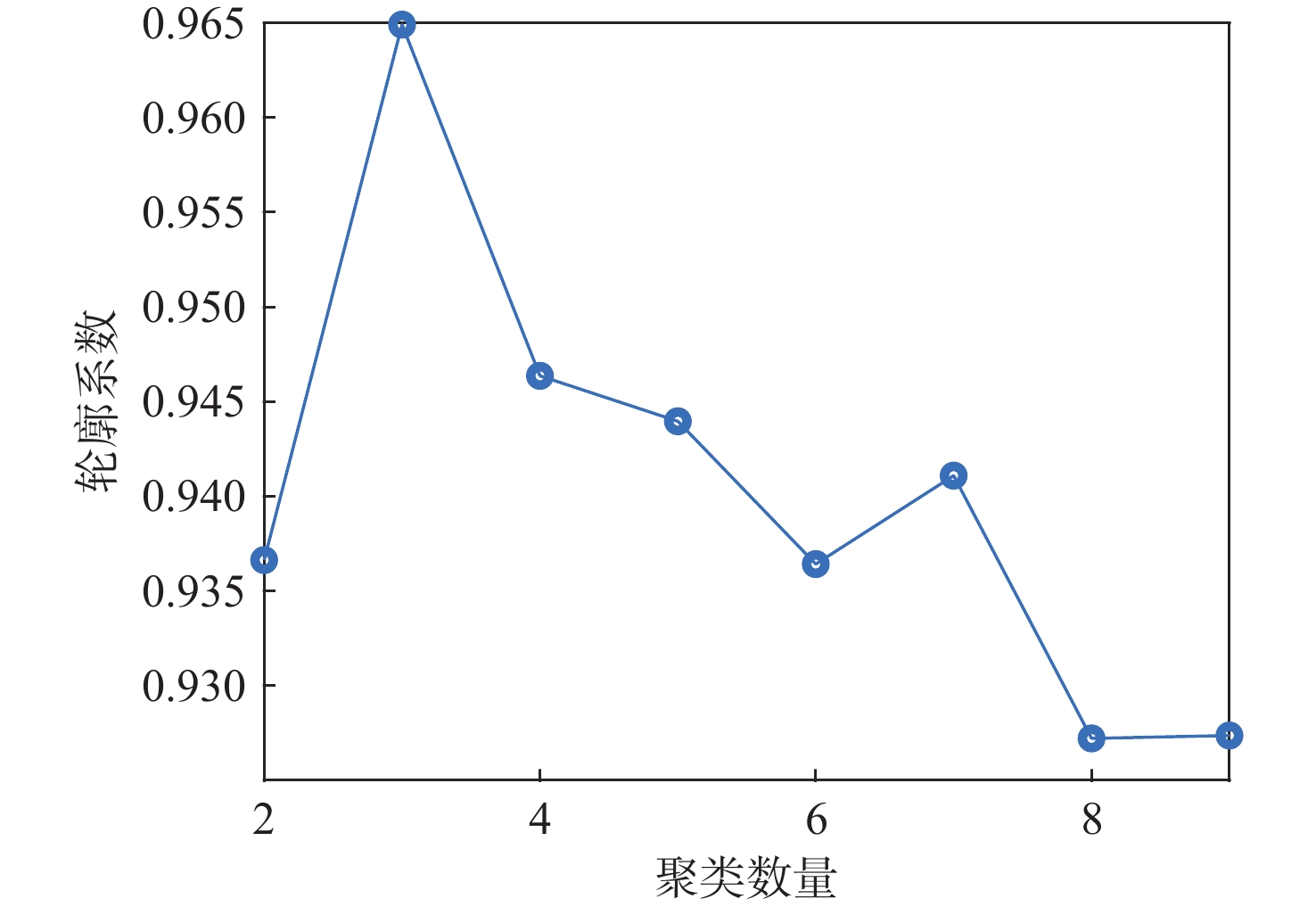

表 1 不同控制模态下的参数
Table 1. Parameters under different control modes
模态 $ \bar \sigma ({t_k}h) $聚类中心 $ {e_y} $聚类中心 $ \bar \sigma ({t_k}h) $范围 $ {e_y} $范围 $ {C_1} $ 0.004 0.0019 ( 0.0035 ,0.004)(0,0.005) $ {C_2} $ 0.003 0.0069 ( 0.0023 ,0.0035 )(0.005, 0.0097 )$ {C_3} $ 0.0016 0.00234 (0.001, 0.0023 )( 0.0097 ,0.36)
下载: 导出CSV

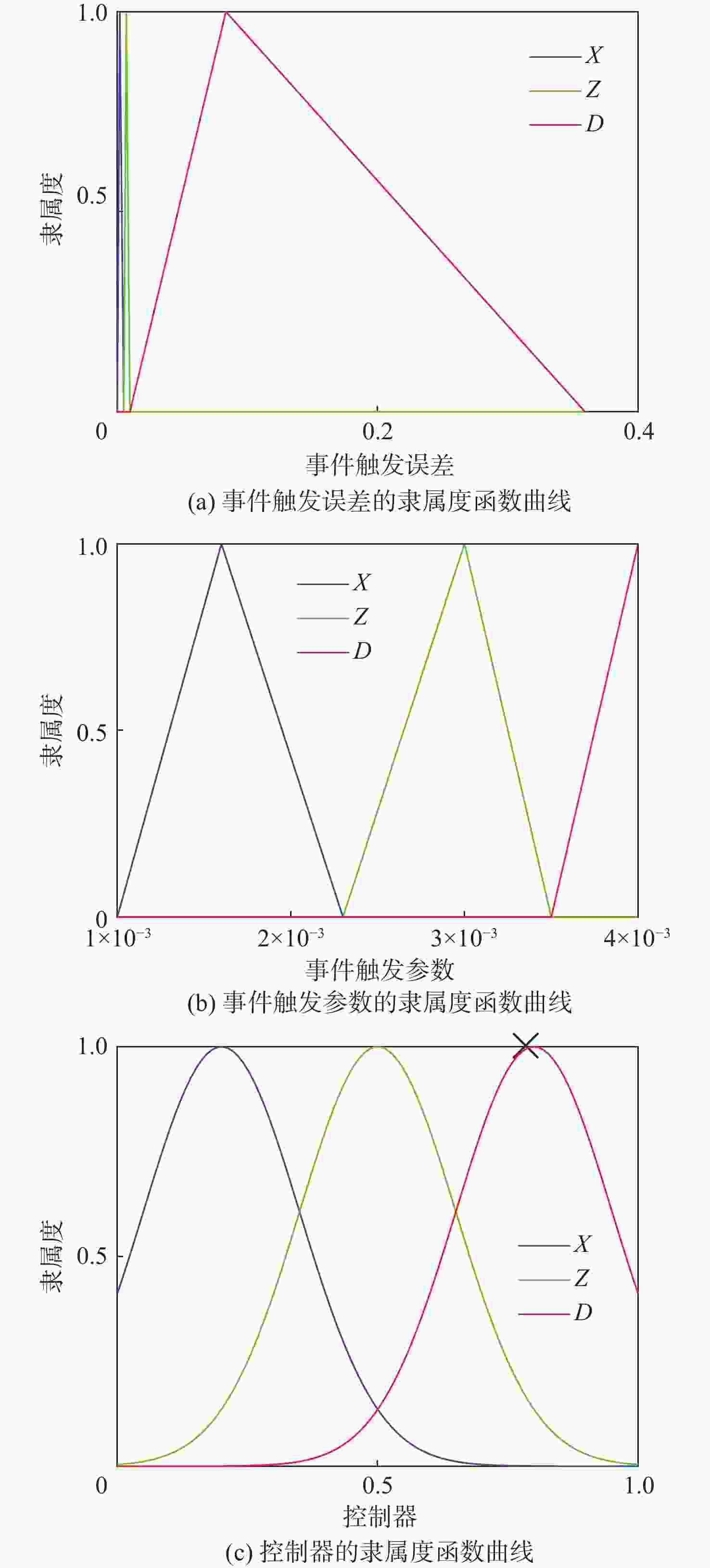

表 2 模糊规则
Table 2. Fuzzy rules
$\sigma ({t_k}h)$ $\Delta \bar {\boldsymbol y}({j_k})$ D Z X D D/D D/Z D/X Z Z/D Z/Z Z/X X X/D X/Z X/X
下载: 导出CSV
-
